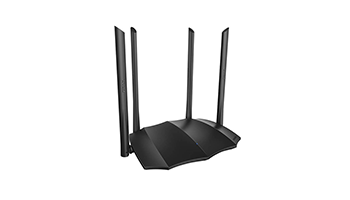

TENDA AC8 AC1200 Dual-band Gigabit Wireless Router



AC8 is a dual band gigabit wireless router specially designed for family with fibre access.Equipped with gigabit ports to support up to 1000 Mbps bandwidth access. The dual band provide 1167Mbps frequency, fully utilise the gigabit fibre.This router is equipped with 28nm 1 GHz CPU to provide better performance. The integrated dual-band technology combines both 2.4GHz and 5GHz under one Wi-Fi name; The 5GHz frequency band is set as priority and faster signal frequency would be allocated to you automatically by our dynamic optimization system. New designed 6 dBi antennas,meet the coverage requirement for small and medium household. AC8 also support broadband account automatic transfer and other features.



AC1200 Dual-band Gigabit Wireless Router



Designed with full gigabit ports, support up to 1000 Mbps bandwidth access,Dual-band provide 1167 Mbps access, fully utilise the gigabit fibre.



Smart Traffic Prioritisation



The integrated dual-band technology combines both 2.4GHz and 5GHz under one Wi-Fi name;The 5GHz frequency band is set as priority and the faster signal frequency would be allocated to you automatically by our dynamic optimization system.



4*6dBi External Dual Band Antennas,Cover 90 Square Meters and Penetrate Two Layer of Walls



Designed with 4*6dBi external dual band antennas, combined with Beamforming signal tracing technology, the Wi-Fi signal is aggregated into a beam directly towards users' device to ensure the best experience.



Standard&Protocol

IEEE802.3，IEEE802.3u，IEEE802.3ab



Interface

1*10/100/1000Mbps WAN port

3*10/100/1000Mbps LAN ports



Antenna

4*6dBi external dual band antennas

Button

1*WPS/Reset button



Power

Input：AC 100-240V—50/60Hz

Output：DC 9V 1A



LED indicator

1*LED

Dimension

200x127x33.6mm(L*W*H)



Wireless Standards

IEEE 802.11ac/a/n @5GHz

IEEE 802.11b/g/n @2.4GHz



Data Rate

2.4GHz: 300Mbps

5GHz: 867Mbps

Frequency

2.4GHz & 5GHz



Wireless Security

WPA-PSK/WPA2-PSK, WPA/WPA2

 Wireless Security : Enable /Disable





Internet Connection Type

PPPoE, Dynamic IP, Static IP

Support automatic access detection

Supports broadband account automatic transfer



Operating Mode

Wireless Router Mode

AP Mode

Universal Repeater mode

WISP Mode



DHCP

DHCP Server

DHCP Client List

DHCP Reservation



Virtual Server

Port Forwaring

DMZ Host

UPnP



Security

Client Filter（supports black list and white list）

Parental Control（supports black list and white list）

Remote Web Management



Firewall

Forbid WAN PING from internet



DDNS

Support DynDNS, 88ip



Other Function

Broadband management

MAC address clone

Static Routing

System Log

Backup & Restore configurations

Firmware upgrade from local



Temperature

Operating Temperature: 0℃ ~ 40℃

Storage Temperature: -40℃ ~ 70℃.



Humidity

Operating Humidity:10% ~ 90% RH non-condensing

Storage Humidity: 5% ~ 90%RH non-condensing.



Default Settings

Default Access: tendawifi.com or http://192.168.0.1



Certification

CE，FCC，CCC，SRRC



Package Content

Wireless Router*1

Gigabit Ethernet Cable*1

Power Adapter*1

Installation Guide*1
