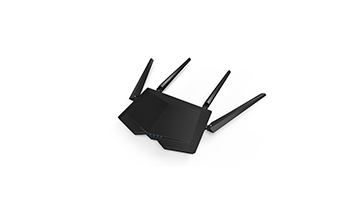

TENDA AC6 AC1200 Smart Dual-Band WiFi Router



With Gigabit speeds complaint with IEEE802.11ac, the TENDA AC6 smart dual-band WiFi router offers throughput as high as 1167Mbps.Powered with the latest features including beamforming+ technology and the innovative MU-MIMO, that's just the start. With the 28nm CPU, independent power amplifiers, four 5dBi high-gain antennas, you are assured to have an uninterrupted gaming experience and 4K video streaming. AC6 has great eco credentials too. With a power saving function, App-based management and migration of PPPoE user credentials allows for a smarter and eco-friendly digital life.



AC6

AC1200 Smart Dual-Band WiFi Router



What It Does



With Gigabit speeds complaint with IEEE802.11ac, the TENDA AC6 smart dual-band WiFi router offers throughput as high as 1167Mbps.

Powered with the latest features including beamforming+ technology and the innovative MU-MIMO, that's just the start. With the 28nm CPU, independent power amplifiers, four 5dBi high-gain antennas, you are assured to have an uninterrupted gaming experience and 4K video streaming.

AC6 has great eco credentials too. With a power saving function, App-based management and migration of PPPoE user credentials allows for a smarter and eco-friendly digital life.



Main Features



• 11ac speed up to 1167Mbps (5GHz: 867Mbps + 2.4GHz: 300Mbps)

• Realtek chipset for stable and fast WiFi connection

• High powered amplifiers and external antennas for whole-home coverage

• Beamforming+ for longer range of IEEE802.11ac-compliant WiFi clients

• Innovative MU-MIMO technology for more connected clients

• Smart WiFi Schedule for lower power consumption

• Migration PPPoE user name and password for hassle-free configuration



5th Generation Wi-Fi: 802.11ac with Dual-band Connectivity



Compliant with IEEE802.11ac, AC6 offers a data rate as high as of 1167Mbps (5GHz: 867Mbps + 2.4 GHz: 300Mbps), triple times faster than 11n-compliant routers. Its fast and stable performance makes it the ideal choice for lag-free HD streaming, online gaming and other bandwidth-intensive tasks.



Four 5dBi high-gain antennas for whole-home WiFi coverage



With four 5 dBi high-gain antennas that powered by the multi-oscillator radiation technology, AC6 blankets you home with reliable WiFi.



High-powered amplifiers



With the high-powered amplifiers for WiFi on both 2.4GHz and 5GHz bands, AC6 delivers a stronger signal through walls, allowing you to enjoy uninterrupted connection in every corner of your home.



28nm CPU for stability



With 28nm CPU, AC6 allows you to enjoy a fast and stable connection throughout your home.



Innovative MU-MIMO technology



Beamforming+ technology enables AC6 to lock on to your WiFi receiving clients rather than blast WiFi in all directions, and mitigates co-channel interference, letting you enjoy fast internet connection.



Beamforming+ for wider WiFi coverage and internet stability



Beamforming+ technology locks on to your WiFi receiving devices rather than simple blast WiFi in all directions. It also reduces interference from other devices for stronger WiFi connections so you can enjoy high-bandwidth activities easily.



Hassle-free configuration



What if you forget your PPPoE user name or password when replacing your older router? Are you still troubled by complicated setup and configurations? AC6 allows you to replicate the user name and password provided by your ISP by connecting the WAN port of your old router to the LAN port of AC6, letting you go from laborious configurations.



Certification

CE/FCC/RoHS



Standard&Protocol

IEEE802.3, IEEE802.3u



Interface

1*10/100Mbps WAN port

3*10/100Mbps LAN ports



Antenna

4*5dBi external antennas



Button

1*WiFi on/off, 1* Reset/WPS button



Power

Input：100-240V—50/60Hz, 0.2A

Output：DC 9V1A



Dimension

220*141.5*49mm



LED indicator

System*1,WAN*1, LAN*1, 2.4G*1, 5G*1,WPS*1



Wireless Standards

IEEE 802.11ac/a/n 5GHz

IEEE 802.11b/g/n 2.4GHz



Data rate

5GHz: Up to 867Mbps

2.4GHz: Up to 300Mbps



Frequency

Simultaneous dual band 2.4 & 5GHz



Transmit Power

CE:

<20dBm(2.4G)

<23dBm(5G)

FCC:

<30dBm



Basic Features

SSID Broadcast: Enable/Disable

Transmission Power: high, medium, low

Beamforming

MU-MIMO



Wireless Security

WPA-PSK/WPA2-PSK, WPA/WPA2

 Wireless Security: Enable/Disable

 WPS(WiFi Protected Set-up) fast encryption



Internet Connection Type

PPPoE, Dynamic IP, Static IP

PPPoE(Russia), PPTP(Russia), L2TP(Russia)



Operating Mode

Wireless Router Mode

Universal Repeater Mode

WISP Mode



DHCP Server

DHCP Server

DHCP Client List

DHCP Reservation



Virtual Server

Port Forwarding

DMZ Host

UPnP



Security

Client Filter

Parental Control(support black list and white list)

Remote Web Management



Firewall

Forbid UDP flood attack

Forbid TCP flood attack

Forbid flood attack

Forbid WAN PING from internet



DDNS

Support DynDNS, Oray.com, 88ip



VPN

IPsec pass through

PPTP pass through

L2TP pass through

PPTP server

PPTP client

L2TP client



Special Features

PPPoE Username/password Clone

Smart WiFi Schedule

Smart Power Saving

Smart LED on/off

Tenda Cloud

Tenda App



Other

Bandwidth Control

Guest Network

IPTV

MAC Clone

Static Routing

System Log

Backup & Restore configurations

Firmware upgrade online

Firmware upgradeable via browser



Temperature

Operating Temperature: 0℃ ~ 40℃

Storage Temperature: -40℃ ~ 70℃.



Humidity

Operating Humidity:10% ~ 90% RH non-condensing

 Storage Humidity: 5% ~ 90%RH non-condensing.



Default Settings

Default Access: tendawifi.com



Package Content

AC1200 Smart Dual-Band WiFi Router

Power Adapter

Install Guide

Ethernet Cable
