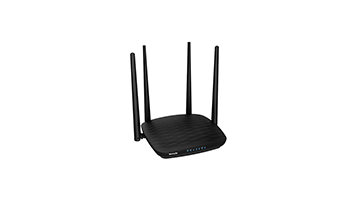

TENDA AC5 AC1200 Smart Dual-Band WiFi Router



AC5 AC1200 Smart Dual-Band WiFi Router.Migration of ISP User Name and Password, Four 5dBi dual-band omni-directional antennas,1 GHz CPU / MU-MIMO / Beamforming+ technology, Remote management via Tenda WiFi App.Equipped with a 1 GHz high-frequency CPU made with 28nm process, AC5 outperforms ordinary routers. Stable and fast internet connection lets you enjoy smooth 4K HD videos and online games without delay.



AC5

AC1200 Smart Dual-Band WiFi Router



Migration of ISP User Name and Password

Four 5dBi dual-band omni-directional antennas

1 GHz CPU / MU-MIMO / Beamforming+ technology

Remote management via Tenda WiFi App



High performance CPU ensures fast internet connection



Equipped with a 1 GHz high-frequency CPU made with 28nm process, AC5 outperforms ordinary routers. Stable and fast internet connection lets you enjoy smooth 4K HD videos and online games without delay.



2.4 GHz +5 GHz ensure faster transmission and stronger signal



Powered by the new 802.11ac Wave 2.0 technology, AC5 offers a combined dual-band wireless rate of as high as 1167 Mbps, a significantly outperforming 802.11n routers in transmission. 5 GHz band can offer more independent channels with less interference and more stable WiFi coverage. Application of MU-MIMO technology improves quantity of simultaneously devices connected to its WiFi Network, including guest network greatly.



MU-MIMO New Technology



Application of MU-MIMO technology improves quantity of simultaneously devices connected to its WiFi Network, including guest network greatly.



Beamforming+ technology



AC5 employees the Beamforming+ technology, which can concentrate disperse wireless signals to a single direction, providing technical support for whole home WiFi coverage of small and medium-sized apartments. The Beamforming+ technology can build a dedicated channel between clients, such as phones and pads, and the router, to ensure a longer transmission distance and higher data transmission stability.



Manage your router via smart Tenda WiFi App anytime anywhere



Start your smart life with Tenda WiFi App;

Cloud-management via Tenda WiFi App allows you to mange your router anytime anywhere;

Disconnect unauthorized users with a single tap;

One-key channel optimization bring you better WiFi experience;

Signal strength adjustment guarantees strongest WiFi signal;

Security check keeps you updated on unauthorized connections.



Three modes for a variety of scenarios



AC5 integrates the Router, WISP, and AP modes for various scenarios. It also supports wireless relay, extending your WiFi network to your whole home.



Sleeping mode helps you save energy



Powered by the intelligent energy saving technology developed by Tenda, AC5, with sleeping mode enabled, can automatically enter into sleep status with WiFi network and all LEDs off, creating a healthy sleep environment for you



All functionalities that suit your needs



· L2TP/PPTP/IPSec;

· Blacklist and Whitelist;

· IPTV;

· Hide SSID to block unauthorized users;

· Guest network dedicated for your guests can protect your privacy and network security;

· Four encryption type secure your WiFi network.



Standard&Protocol

IEEE802.3, IEEE802.3u



Interface

10/100 Mbps WAN port*1

10/100 Mbps LAN port*3



Antenna

5dBi External antenna*4



Button

WPS/Reset button*1, WiFi on/off button*1



Power

AC input: 100-240V-50/60Hz, 0.2A

DC output: 9V 1A



LED indicator

System*1, WiFi*1, WAN*1, LAN*3



Data Rate

5 GHz: Up to 867 Mbps

2.4 GHz: Up to 300 Mbps



Frequency

Concurrent dual band 2.4 GHz & 5 GHz



Transmit Power

2.4G:

16dbm@MCS7

17dbm@OFDM 54M

19dbm@CCK 11M

5G:

12dbm@MCS9

14dbm@MCS7



Basic Features

SSID Broadcast: Enable/Disable

Beamforming

MU-MIMO



Wireless Security

WPA-PSK/WPA2-PSK, WPA/WPA2

Wireless Security: Enable/Disable

WPS (WiFi Protected Set-up) quick encryption



Internet Connection Type

PPPoE, Dynamic IP, Static IP

PPPoE (Russia), PPTP (Russia), L2TP (Russia)



Operating mode

Wireless Router Mode

Universal Repeater Mode

WISP Mode

AP Mode



DHCP Server

DHCP Server

DHCP Client List

DHCP Reservation



Virtual Server

Port Forwarding

DMZ Host

UPnP



Security

Client Filter (support blacklist and whitelist)

Parental Control

Remote Management



Firewall

Forbid UDP flood attack

Forbid TCP flood attack

Forbid flood attack

Forbid WAN PING from internet



DDNS

Support DDNS, No-ip, 3322.org, Oray.com, 88ip



VPN

Ipsec

PPTP

L2TP

PPTP client

L2TP client



Features

PPPoE Username/Password Clone

Smart WiFi Schedule

Smart Sleeping Mode

Smart LED on/off

Tenda WiFi App



Other

Bandwidth Control

Guest Network

IPTV

MAC Address Clone

Static Routing

System Log

Backup & Restore configurations

Online firmware upgrade

Local firmware upgrade



Temperature

Operating Temperature: 0℃ - 40℃

Storage Temperature: -40℃ -70℃.



Humidity

Operating Humidity: (10 - 90)% RH non-condensing

Storage Humidity: (5 - 90%) RH non-condensing.

Default Settings

Default Access: tendawifi.com



Certification

CE/FCC/RoHS



Package Content

AC1200 Smart Dual-Band WiFi Router

Power Adapter

Quick Installation Guide

Ethernet Cable
