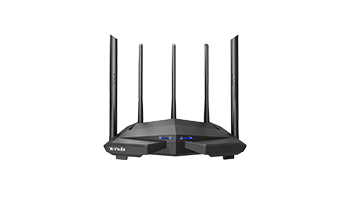

Tenda AC11 AC1200 Dual Band Gigabit WiFi Router



With 1 GHz CPU made with 28 nm process, AC11 manifests excellent capacity on data processing and energy conservation.

It works well with optical fiber with bandwidth ranging from 50 M, 100 M, 200 M to even 1000 M, allowing you to enjoy smooth HD videos and games.



All Gigabit Ports for Full Play of Your Even-increasing

Bandwidth of Optical Fiber

AC11 is a high-performance WiFi router designed with full Gigabit WAN and LAN ports,removing the bottleneck of wired ports speed when working with faster bandwidth of optical fiber.



Strong Dual Band WiFi Signal for Multi-wall Penetration

With the new generation 802.11ac wave 2.0 standard, AC11 offers a concurrent dual band data rate of as high as 1167 Mbps. Wireless signal boosting technology both on 2.4 GHz and 5 GHz bands broadens your WiFi coverage, and Beamforming+ technology makes WiFi signal of AC11 outstanding behind multiple walls.



Innovative MU-MIMO technology

With innovative MU-MIMO, the breakthrough of the new generation 802.11 ac standard,AC11 can communicate with multiple devices at a time, shortening latency and improving quantities of connected devices.



5*6dBi External Antennas for Better WiFi Signal

Designed with 5*6dBi external dual band antennas, combined with Beamforming signal tracing technology, the Wi-Fi signal is aggregated into a beam directly towards users' device to ensure the best experience.



Configuration-free for quick setup

What if you forget your PPPoE user name or password, or you cannot login to the web UI of the router for setup? AC11 can eliminate your concern by migrating your PPPoE user name and password from your original router.



Hardware



Standard&Protocol

IEEE802.3, IEEE802.3u, IEEE802.3ab



Interfaces

1*10/100/1000Mbps WAN port

3*10/100/1000Mbps LAN ports



Antenna

5*6dBi external antennas



Button

1* WPS/Reset button,1*WiFi ON/OFF



Power

Input：AC 100-240V~50/60Hz, 0.4A

Output：DC 12V 1A



Dimension

8.66 * 5.57 * 1.93 in (220*141.5*49mm)



LED Indicator

Sys*1,WAN*1, LAN*1,WiFi/WPS*1



Wireless



Wireless Standard

IEEE 802.11ac wave2/a/n 5GHz

IEEE 802.11b/g/n 2.4GHz



Data Rate

5GHz: Up to 867Mbps

2.4GHz: Up to 300Mbps



Frequency

Simultaneous dual band 2.4 & 5GHz



Transmission Power

CE:

<20dBm(2.4G)

<23dBm(5G)

FCC:<30dBm



Basic Features

SSID Broadcast: Enable/Disable

Transmission Power: high, medium, low

Beamforming

MU-MIMO



Wireless Security

WPA-PSK/WPA2-PSK, WPA/WPA2

Wireless Security : Enable /Disable



Software



Internet Connection Type

PPPoE, Dynamic IP, Static IP

Support automatic access detection

Supports broadband account automatic transfer



Operating Mode

Wireless Router Mode

Universal Repeater Mode

WISP Mode

AP Mode



DHCP Server

DHCP Server

DHCP Client List

DHCP Reservation



Virtual Server

Port Forwarding

DMZ Host

UPnP



Security

Client Filter（supports black list and white list）

Parental Control（supports black list and white list）

Remote Web Management



Firewall

Forbid UDP flood attack

Forbid TCP flood attack

Forbid flood attack

Forbid WAN PING from internet



DDNS

Support DynDNS, 88ip



VPN

IPsec pass through

PPTP pass through

L2TP pass through



Special Features

PPPoE Username/password Clone

Smart WiFi Schedule

Smart Power Saving

Smart LED on/off

Tenda Cloud

Tenda App



Others

Broadband management

MAC address clone

System Log

Backup & Restore configurations

Firmware upgrade from local



Others



Temperature

Operating Temperature: 0℃ ~ 40℃

Storage Temperature: -40℃ ~ 70℃.



Humidity

Operating Humidity:10% ~ 90% RH non-condensing

Storage Humidity: 5% ~ 90%RH non-condensing.



Default Settings

Default Access: tendawifi.com or http://192.168.0.1



Certification

CE/FCC/RoHS



EIRP Power (Max)

2.400-2.4835GHz: 19.95dBm (EIRP)

5.150-5.250GHz: 22.90dBm (EIRP)



Package Contents

Wireless Router*1

Gigabit Ethernet Cable*1

Power Adapter*1

Installation Guide*1
