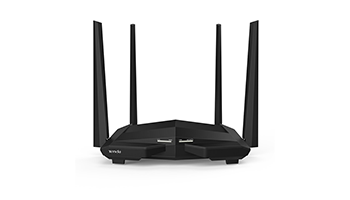

TENDA AC10U AC1200 Smart Dual-Band Gigabit WiFi Router



AC10 leads the way in next generation routers, offering dual-band Gigabit wireless with all-new 802.11ac Wave 2.0 Wi-Fi. Its powerful 1GHz CPU and 128MB DDR3 provide the best performance in both 2.4GHz and 5GHz. The 5GHz band works at up to 867Mbps, while the 2.4GHz frequency tops 300Mbps, serving an incredible combined bandwidth of 1167Mbps.



AC10

AC1200 Smart Dual-band Wireless Router



Gigabit Ports/4*5dBi Omnidirectional Antennas/2.4G and 5G Wireless Enhanced Module/

MU-MIMO/Beamforming+/APP Management



With 1 GHz CPU made with 28 nm process, AC10 manifests excellent capacity on data processing and energy conservation.

It works well with optical fiber with bandwidth ranging from 50 M, 100 M, 200 M to even 1000 M, allowing you to enjoy smooth HD videos and games.



All Gigabit ports for full play of your ever-increasing bandwidth of optical fiber



AC10 is a high-performance WiFi router designed with full Gigabit WAN and LAN ports,removing the bottleneck of wired ports speed when working with faster bandwidth of optical fiber.



Strong dual band WiFi signal for multi-wall penetration



With the new generation 802.11ac wave 2.0 standard, AC10 offers a concurrent dual band data rate of as high as 1167 Mbps. Wireless signal boosting technology both on 2.4 GHz and 5 GHz bands broadens your WiFi coverage, and Beamforming+ technology makes WiFi signal of AC10 outstanding behind multiple walls.



Innovative MU-MIMO technology



With innovative MU-MIMO, the breakthrough of the new generation 802.11 ac standard,AC10 can communicate with multiple devices at a time, shortening latency and improving quantities of connected devices.



Interface

1*USB 2.0

3*GE LAN Ports

1*GE WAN Port



Button

1*WiFi On/Off button

1*Reset/WPS button



Power Supply

Power Input: 100-240V—50/60Hz

Power Output: DC 12V==2A



Dimension

Package Box: 390*198*70mm（L*W*H)

Device: 220*141.5*49mm（L*W*H)



Weight

Gross Weight: 810g

Net Weight: 350g



Antenna

4*5dBi External Dual Band Antennas



LED indicator

1*WAN、1*LAN、1*Wi-Fi/WPS、1*SYS



Standard&Protocol

Wireless Standards:IEEE 802.11ac/n/a 5GHz

IEEE 802.11n/g/b 2.4GHz

Wired Standards:IEEE 802.3, IEEE 802.3u



Frequency

5GHz: Up to 867Mbps

2.4GHz: Up to 300Mbps



Transmit Power

CE:

<20dBm （2.4G）

<23dBm （5G）

FCC:<30dBm



Wireless Security

WPA-PSK, WPA2-PSK, WPA/WPA2

Wireless Security: Enable/Disable

WPS Fast Encryption



WAN Connection Type

Dynamic IP/Static IP/PPPoE

Connection Type Auto Detection

Broadband Account and Password Migration



Working Mode

Router/AP/Universal Repeater/WISP



Management

Local Management

Remote Management

Tenda APP



Basic Function

MU-MIMO

SSID Broadcast and Hide

Beamforming

Signal Power Adjustment



Virtual Server

UPnP

DMZ

Port Forwarding



DHCP

DHCP Server and Client

DHCP Client List

DHCP Address Reservation



DDNS

DynDns, NO-IP, Oray.com, 3322.org, 88ip



VPN

PPTP Client

PPTP Server

L2TP Client



Firewall

Forbid UDP Flood Attack

Forbid TCP Flood Attack

Forbid ICMP Flood Attack

Forbid WAN Ping from Internet

PPTP Pass Through

L2TP Pass Through

IPSec Pass Through



Features

Smart Wi-Fi Schedule

Smart Power Saving

Smart LED On/Off



Other

Bandwidth Control

MAC Address Filter

IP and MAC Address Binding

IPTV

Black/White List

MAC Clone

Static Routing

System Log

Network Time

Backup/Restore Settings

System Upgrade Online



Certification

CE, FCC, RoHS, BSMI, NCC, EAC, IC



Default Settings

Default Access Address: tendawifi.com or http://192.168.0.1



Package Content

AC1200 Smart Dual-Band Gigabit WiFi Router

Power Supply

Ethernet Cable

Quick Installation Guide

System Requirements

Microsoft Windows XP, Vista™ or Windows 7, Windows 8/8.1/11

MAC OS, UNIX or Linux



Environment

Operating Environment:0℃~40℃

Storage Environment:-40℃~70℃

Operating Environment:10%~90% RH non-condensing

Storage Environment:5%~90% RH non-condensing
