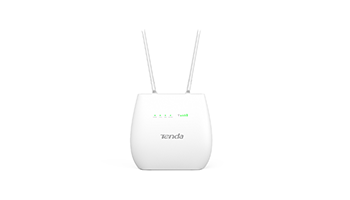

TENDA 4G680 N300 Wi-Fi 4G LTE Router



4G680 is our 4G LTE router with the latest LTE technology. Simply pop in your chosen SIM card and you will have access to high-speed Internet that will support multiple devices.The device supports VOLTE and CSFB technology and by connecting an external landline or wireless phone, you can surf the Internet and make calls simultaneously.Not only that the Tenda 4G680 is exquisitely designed so you can place it anywhere around your home to enhance your decor.



What it does



The Tenda 4G680 is our 4G LTE router with the latest LTE technology. Simply pop in your chosen SIM card and you will have access to high-speed Internet that will support multiple devices.

The device supports VOLTE and CSFB technology and by connecting an external landline or wireless phone, you can surf the Internet and make calls simultaneously.

Not only that the Tenda 4G680 is exquisitely designed so you can place it anywhere around your home to enhance your decor.



Free yourself with 4G LTE and Wi-Fi



Using the latest LTE broadband & 802.11N wireless technology, you can surf the Internet simply by connecting to the broadcast Wi-Fi . Whether you’re in a rural home, on vacation or working in a temporary place, the 4G680 always provides reliable service.



Easy to use, no configuration needed



The 4G680 will support over 300 mobile/cellular networks in over 135 countries.Just pop in your selected SIM card and then turn it on to enjoy high-speed Internet via Wi-Fi - no configuration required!



Enjoy the benefits of a fast 4G LTE Mobile Network



Supporting the LTE Category 4 network standard, the 4G680 can reach up to 150Mbps download speeds and 50Mbps upload speeds.



Smooth, strong Wi-Fi coverage



Enjoy smoother wireless network connections with the 4G680’s robust Wi-Fi coverage that eliminates dead zones.



Get the most out of your Voice-calls



The 4G680 supports extenal landline phones via VoLTE( Voice over LTE) or CSFB (Circuit Switch Fallback).

Simply connect the landline phone to the phone port of the 4G680 and then you can make calls at home and surf the Internet at the same time;



Dimension1: 30mm*117mm*46mm（L*W*H）

Net Weight: About 295 g

Color: White



Link Speed Rate:

FDD-LTE DL/UL 150Mbps/50Mbps

DC-HSPA+ DL/UL 43.2 Mbps/5.76 Mbps

Megabit Wired speed rate



LED indicator:

Power on/off

2.4GHz WiFi Status

LAN Port Status

4G/3G Signal strength Bars



Power Supply:

Input:110V-220V AC 50/60Hz

DC:12V/1A



External Interface:



Two RJ45 Ports

One RJ11 Port

2FF SIM slot



Button:

Power on/off

Reset Hole



Standard&Protocol: IEEE 802.11n、IEEE 802.11g、IEEE 802.11b

Antenna: Two internal Wi-Fi antennas+Two external 3G/4G antennas

Wireless Link Rate: 802.11 b/g/n 300Mbps

Frequency Range: 2.4GHz



Basic Function:

Client Filter

SSID,Broadcast

Channel



Wireless Security:



WPA-PSK/WPA2-PSK

WPA/WPA2

WEP



Internet Connection Type: FDD LTE/TDD LTE/WCDMA/GSM



Function:



Automatic APN matching according to USIM

Date traffic management

SMS Manager

USSD Service

MAC Filter

DMZ

DHCP

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions



Browser:IE, Firefox, Google Chrome, Safari, Opera



Operation System: Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X 10.5, 10.6, 10.7 and 10.8 with latest upgrades



Temperature:

Operating Temperature: 0℃~45℃

Storage Temperature: -30ºC~70ºC



Humidity:

Operating Humidity: 10% ~ 90% RH Non-condensing

Storage Humidity: 5% ~ 90% RH Non-condensing



Default Settings:

Login IP Address: 192.168.0.1

Login User Name/Password: admin/admin

SSID: Tenda_xxxx (where "xxxx" represents the last four characters of device MAC address)

Password:See the label on back cover



Package Content:

4G680V2.0 device

RJ45 Cable

RJ11 Cable

Quick Install Guide

Power supply 12V/1A(EU)
