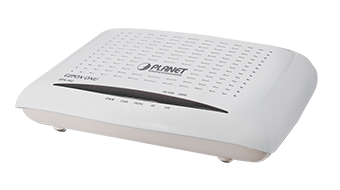

GEPON SFU ONU router (1xPON, 1x FE, 1xGE)
The growing popularity of broadband Internet services such as HDTV, IPTV or VoIP causes a rapid increase in demand for network bandwidth. Currently existing network environments do not fully meet the requirements of multimedia services. Passive Fiber Optic Network (Passive Optical Network -
PON) is the most promising new technology. Compared to other broadband technologies such as xDSL, PON guarantees a range of up to 20 km between network nodes, and thus lower costs due to the reduction of the number of network devices, long life expectancy of the optical infrastructure,
and most importantly much higher bandwidth.
Technical data
Model
EPN-102
Equipment
Baud rate
To the user: 1.25 Gbps To network: 1.25 Gbps
Wavelength
To the user: 1490nm To the network: 1310nm
Optical specification
To the user: Min. Receiving sensitivity: -26dBmMax. saturation: -3dBm To network: Min. output power: -1 dBmMax. RMS: 3nm
fiber
G.652 single-mode
ports
LAN: 1 x 10 / 100Base-TX, Auto-negotiation, Auto MDI / MDI-X1 x 10/100 / 1000Base-TX, Auto-negotiation, Auto MDI / MDI-XWAN: 1 (1.25G EPON with SC connection, 1000Base -PX-20)
LEDs
PWR, Link, PON, FE, GE
buttons
1 x reset, 1 x power supply
Software
EPON functions
Compliance with IEEE 802.3ah802.
3ah Forward Error Correction Operation Administration Management (OAM) by IEEE 802.3ah Dynamic Bandwidth Allocation (DBA)
protocols
IEEE 802.3 802.1Q VLAN802.1P QoS
Security
128-bit AES 802.1x
QoS
QoS based on IEEE802.1p port, IPv4 ToS or Diff-Serv, IPv6 Traffic Class, 802.1Q VLAN ID, destination / source MAC
Other
Up to 8 LLID64 MAC entries 40 queues (20 upstream / 20 downstream) 1.5 MB buffer 256 classification rules for layer-2/3/4 full-duplex 802.3x flow control and backpressure MIB counters
Physical Features
Dimensions (W x D x H)
176 x 124 x 35 mm
Power
12V DC, 1.0A
Temperature
Work: 0 ~ 50 degrees C Storage: -20 ~ 70 degrees C.
Humidity
Operation: 10 ~ 90% non-condensing Storage: 5 ~ 95% non-condensing
Certificates
FCC, CE
