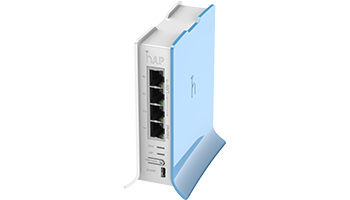

The home Access Point lite (hAP lite) is intended for your apartment, house or office.
It supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.
The device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others.
The hAP lite is equipped with a 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. USB power supply is included.
The device accepts powering from the microUSB port. The port itself doesn't function as a standard microUSB port for data, it is only used for power.
| Product specifications | |||
| Details | |||
| Product code | RB941-2nD-TC | ||
| CPU nominal frequency | 650 MHz | ||
| CPU core count | 1 | ||
| Size of RAM | 32 MB | ||
| 10/100 Ethernet ports | 4 | ||
| Wireless standards | 802.11b/g/n | ||
| Wireless chip model | QCA9533 | ||
| Supported input voltage | 5 V - 5 V | ||
| License level | 4 | ||
| Antenna gain DBI | 1.5 | ||
| CPU | QCA9533 | ||
| Max Power consumption | 3W | ||
| Number of chains | 2 | ||
| Storage type | FLASH | ||
| Storage size | 16 MB | ||
| Wireless specifications | |||
| 2.4 GHz | |||
| Transmit power (dBm) | Receive Sensitivity | Transmit power (mW) | |
| 1MBit/s | 22 | -96 | 158 |
| 11MBit/s | 22 | -89 | 158 |
| 6MBit/s | 20 | -93 | 100 |
| 54MBit/s | 18 | -74 | 63 |
| MCS0 | 20 | -93 | 100 |
| MCS7 | 16 | -71 | 40 |
