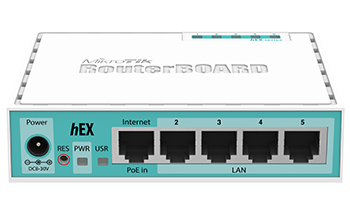

hEX
The hEX is a small five port Gigabit ethernet router in a nice plastic case for managing your wired SOHO network.
The unit is equipped with a powerful 720MHz CPU, 64MB RAM, five Gigabit Ethernet ports and a RouterOS L4 license. The device supports 6-30V input voltage and passive PoE input
|
Details |
|
|---|---|
|
Product code |
RB750Gr3 |
|
CPU nominal frequency |
720 MHz |
|
CPU core count |
1 |
|
Size of RAM |
64 MB |
|
10/100 Ethernet ports |
None |
|
10/100/1000 Ethernet ports |
5 |
|
MiniPCI slots |
0 |
|
MiniPCI-e slots |
0 |
|
Number of USB ports |
0 |
|
Power Jack |
1 |
|
PoE out |
No |
|
PoE in |
Yes |
|
Supported input voltage |
6 V - 30 V |
|
Voltage Monitor |
Yes |
|
CPU temperature monitor |
No |
|
PCB temperature monitor |
Yes |
|
Dimensions |
113x89x28mm |
|
Operating System |
RouterOS |
|
Operating temperature range |
-30 + 70 C |
|
Current Monitor |
No |
|
CPU |
QCA9556-AR4A |
|
Max Power consumption |
4W |
|
SFP ports |
0 |
|
SFP+ ports |
0 |
|
USB slot type |
USB type A |
|
Serial port |
Non |
| Product specifications | |
| Details | |
| Product code | RB750Gr2 |
| CPU nominal frequency | 720 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100/1000 Ethernet ports | 5 |
| Power Jack | 1 |
| PoE in | Yes |
| Supported input voltage | 6 V - 30 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Dimensions | 113x89x28mm |
| Operating System | RouterOS |
| Tested ambient temperature | -30 + 70 C |
| License level | 4 |
| CPU | QCA9556 |
| Max Power consumption | 4W |
| Storage type | FLASH |
| Storage size | 16 MB |
