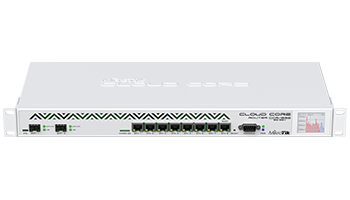

The new MikroTik RouterBOARD Cloud Core Router CCR1036-8G-2S+ has two SFP+ ports for 10G interface support. The CCR1036-8G-2S+ uses the 36 core Tilera CPU and delivers excellent performance with the possibility of ten gigabit links.



CCR1036-8G-2S+ Key Features



1U rackmount case

has two SFP+ ports

eight Gigabit ethernet ports

a serial console cable

a USB port

The CCR1036-8G-2S+ has two SODIMM slots, by default it is shipped with 4GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more).







Details



Product code CCR1036-8G-2S+EM

SFP DDMI Yes

CPU nominal frequency 1.2 GHz

CPU core count 36

Architecture TILE

Size of RAM 16 GB

10/100 Ethernet ports 0

10/100/1000 Ethernet ports 8

MiniPCI slots 0

MiniPCI-e slots 0

Number of USB ports 1

Memory Cards 1

Memory card type microSD

Power Jack 1

Supported input voltage 28 V - 18 V

PoE in No

PoE out No

Voltage Monitor Yes

CPU temperature monitor Yes

PCB temperature monitor Yes

Dimensions 355x145mm55mm

Operating System RouterOS

Operating temperature range -30C to +60C

License level 6

Antenna gain DBI No

Current Monitor Yes

CPU TLR4-03680CG-12CE-A3b

SFP ports 0

SFP+ ports 2

USB slot type microUSB type AB

Number of chains 0

Serial port RS232
