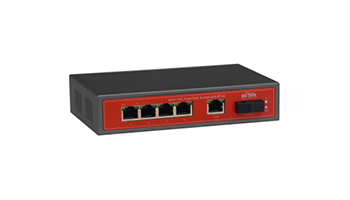

WI-TEK WI-PS105F 5xEthernet, 4xPoE 802.3af/at, 1x SC Fiber, Unmanaged, 65W



what this product does

WI-PS105F is a 5FE+1SC 10/100Mbps Ports unmanaged switch that requires no configuration and provides 4 PoE ports. The switch provides an easy way to expand your wired network. All 6 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the WI-PS105F can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the WI-PS105F can save up to 68% of power consumption, making it an eco-friendly solution for your home or office network.

High Performance

WI-PS105F Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, WI-PS105F forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make WI-PS105F work reliably.

Easy to Use

The auto features of this Ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.



6-port PoE network switch; 5 x 10 / 100Mbps Fast Ethernet port + 1 x 10 / 100Mbps SC Uplink optical port; PoE + support IEEE 802.3af / at (Port 1 ~ Port 4), up to 30W max per port (total PoE budget 65W); Ethernet signal transmission up to 100 m; Functions: Prioity / MAC address auto-learning / Auto-aging / Port VLAN; 220Vac; dimensions 270x180x44 mm
