8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
    Green Ethernet technology saves the power up to 80%
    IEEE 802.3x flow control provides reliable data transfer
    Plastic case, desktop or wall-mounting design
    Plug and play, no configuration required

    Innovative energy-efficient technology saves power up to 80%
    Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
    Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
    16Gbps Switching Capacity
    15KByte Jumbo frame improves performance of large data transfers
    Auto-MDI/MDIX eliminates the need for crossover cables
    Supports MAC address auto-learning and auto-aging
    Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
    Fanless design ensures quiet operation
    Desktop or wall-mounting design
    Plug and Play design simplifies installation

HARDWARE FEATURES
Standards and Protocols     IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
Interface     8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity     Fanless
Power Consumption     Maximum: 4.63W (220V/50Hz)
External Power Supply     100-240VAC, 50/60Hz
Buffer Size     2Mbit
Jumbo Frame     15 KB
Switching Capacity     16 Gbps
Dimensions ( W x D x H )     7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm)
SOFTWARE FEATURES
Transfer Method     Store and Forward
MAC Address Table     8K
Advanced Functions     Green Technology, saving power up to 80%
802.3X Flow Control, Back Pressure
OTHERS
Certification     FCC, CE, RoHs

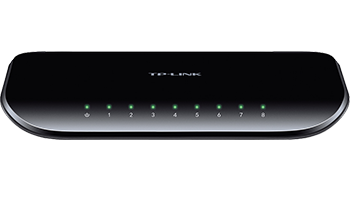

Package Contents     8-Port Gigabit Desktop Switch TL-SG1008D
Power Adapter
Installation Guide
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
