Overview

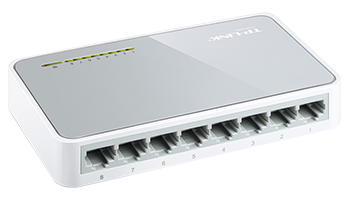

The 8-Port Unmanaged 10/100Mbps Desktop Switch from TP-Link is a networking tool that's affordable and easy to use. This switch features eight Fast Ethernet ports for connecting computers or other Ethernet-enabled devices on your LAN network. In addition, this switch supports flow control, 10K jumbo frames, MAC address auto-learning and auto-aging, as well as Auto MDI/MDIX on all ports. It is packaged with material that is 80% recyclable and also features built-in energy-efficient technology so as to reduce power consumption when possible.

    Innovative energy-efficient technology saves power up to 70% . As part of the energy-efficient technology, this switch automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network

    Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

    Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

    Auto-MDI/MDIX eliminates the need for crossover cables

    Supports MAC address auto-learning and auto-aging

    Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps, and 1000Mbps hardware

    Fan-less design ensures quiet operation

    Desktop or wall-mounting design

    Plug and Play design simplifies installation
Specifications

Performance
Standards     IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3x
Protocols     CSMA/CD, TCP/IP
Ports     8x  RJ-45 for 10/100Mbps Ethernet ports with Auto MDI/MDIX
Maximum Forwarding Rate     10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Bandwidth     Backbound: 1.6Gbps
MAC Address Table Size     1k
Speed     Transfer Rate
Ethernet: 10Mbps (Half-duplex)
Ethernet: 20Mbps (Full-duplex)
Fast Ethernet: 100Mbps (Half-duplex)
Fast Ethernet: 200Mbps (Full-duplex)
Transmission     Method: Store and Forward
Cables     Supported Cabling:

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
Advanced Features     MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
LED     Power, Link/Act for all ports
General
System Requirements     Not specified by the manufacturer
Regulations (EMC)     FCC, CE, RoHs
Environmental Requirements     Operating Temperature: 32° to 104°F / 0° to 40°C
Non-Operating Temperature: -40° to 158°F / -40° to 70°C
Operating Humidity: 10% to 90% (non-condensing)
Storage Humidity: 5% to 95% (Non-condensing)
Power Requirements     External Power Adapter: 100 to 240VAC, 50/60Hz
Base Dimensions (WxHxD)     5.5 x 3.4 x 1.1" / 14 x 8.7 x 2.8cm
