Overview

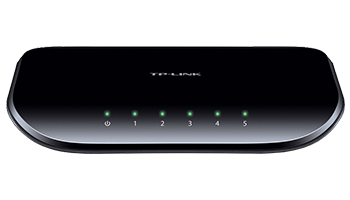

The 5-Port Unmanaged Gigabit Desktop Switch from TP-Link is a networking tool that's affordable and easy to use. This switch features five speedy Gigabit Ethernet ports for connecting computers or other Ethernet-enabled devices on your LAN network. In addition, this switch supports flow control, 15K jumbo frames, MAC address auto-learning and auto-aging, as well as Auto MDI/MDIX on all ports. It is packaged with material that is 80% recyclable and also features built-in energy-efficient technology so as to reduce power consumption when possible.

Note: Please note that this desktop switch will only work with DSL and not with a cable modem.

    The built-in energy-efficient technology saves power of up to Up to 75% when compared to conventional TP-Link switches

    Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

    Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

    Switching capacity of 10Gbps

    15k Jumbo frame improves performance of large data transfers

    Store and forward switching scheme

    Auto-MDI/MDIX eliminates the need for crossover cables

    Supports MAC address auto-learning and auto-aging

    Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps, and 1000Mbps hardware

    Plug and Play design simplifies installation

    The switch features a quiet, fan-less design so that it doesn't disturb anyone working nearby

Performance
Standards     IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3x
IEEE802.3ab
Protocols     CSMA/CD, TCP/IP
Ports     5x  RJ-45 for 10/100/1000Mbps Ethernet ports with Auto MDI/MDIX
MAC Address Table Size     8K
Frame Size     Jumbo Frame: 15K
Transmission     Method: Store and Forward
Switching Capacity     10Gbps
Data Transfer Speed     Half Duplex:
10Mbps
100Mbps
1000Mbps

Full Duplex:
20Mbps
200Mbps
2000Mbps
Advanced Features     MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
LED     Power, Link/Act for all ports
General
System Requirements     Windows 2000/XP/Vista/7
Linux
MAC OS
Certifications     FCC, CE, RoHs
Environmental Requirements     Operating Temperature: 32° to 104°F / 0° to 40°C
Non-Operating Temperature: -40° to 158°F / -40° to 70°C
Operating Humidity: 0% to 90% (non-condensing)
Storage Humidity: 5% to 90% (Non-condensing)
Power Requirements     External Power Adapter: 100 to 240VAC, 50/60Hz
Dimensions     6.5 x 4.3 x 1.1" / 16.5 x 10.8 x 2.8cm
