Overview

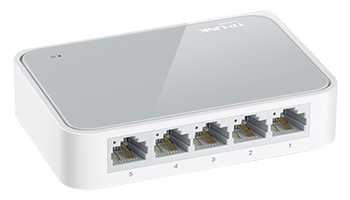

The 5-Port Unmanaged 10/100Mbps Desktop Switch from TP-Link is a networking tool that's affordable and easy to use. This switch features five Fast Ethernet ports for connecting computers or other Ethernet-enabled devices on your LAN network. In addition, this switch supports flow control, 10K jumbo frames, MAC address auto-learning and auto-aging, as well as Auto MDI/MDIX on all ports. It is packaged with material that is 80% recyclable and also features built-in energy-efficient technology so as to reduce power consumption when possible.

    Innovative energy-efficient technology saves power up to 70%

    Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

    Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

    Auto-MDI/MDIX eliminates the need for crossover cables

    Supports MAC address auto-learning and auto-aging

    Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps, and 1000Mbps hardware

    Fan-less design ensures quiet operation

    Desktop or wall-mounting design

    Plug and Play design simplifies installation

Specifications

Performance
Standards     IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3x
Protocols     CSMA/CD, TCP/IP
Ports     5x  RJ-45 for 10/100Mbps Ethernet ports with Auto MDI/MDIX
Maximum Forwarding Rate     10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Bandwidth     Backbound: 1Gbps
MAC Address Table Size     1k
Speed     Transfer Rate
Ethernet: 10Mbps (Half-duplex)
Ethernet: 20Mbps (Full-duplex)
Fast Ethernet: 100Mbps (Half-duplex)
Fast Ethernet: 200Mbps (Full-duplex)
Transmission     Method: Store and Forward
Cables     Supported Cabling:

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
Advanced Features     MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
LED     Power, Link/Act for all ports
General
System Requirements     Not specified by the manufacturer
Regulations (EMC)     FCC, CE, RoHs
Environmental Requirements     Operating Temperature: 32° to 104°F / 0° to 40°C
Non-Operating Temperature: -40° to 158°F / -40° to 70°C
Operating Humidity: 10% to 90% (non-condensing)
Storage Humidity: 5% to 95% (Non-condensing)
Power Requirements     External Power Adapter: 100 to 240VAC, 50/60Hz
Base Dimensions (WxHxD)     5.5 x 3.4 x 1.1" / 14 x 8.7 x 2.8cm
