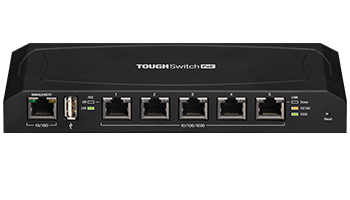

The Ubiquiti TOUGHSwitch PoE is a 5-port Gigabit switch with 24V PoE support for each port. The TOUGHSwitch 5-Port is a cost effective solution, perfectly designed for powering a number of Ubiquiti products including the airMAX, the UniFi, and airVision devices.

Ubiquiti TOUGHSwitch PoE Key Features

    Ports - 5 Gigabit PoE
    PoE - 24V Configurable Passive
    TOUGHSwitch PoE Configuration Interface
    Wall-Mountable
    Product Model Number: TS-5-PoE

Before and After Ubiquiti TOUGHSwitch


Ubiquiti TOUGHSwitch

Ubiquiti 5-Port TOUGHSwitch PoE Technical Specifications
General

    Dimensions 197 x 87.5 x 27.3 mm
    Weight 250 g
    Power Input 24VDC, 2.5A Power Adapter (Included)
    Max. Power Consumption 60 W
    PoE Out Voltage Range 22-24VDC
    Max. PoE Wattage Per Gigabit Port 18 W
    ESD Rating 24 kV Air / 24 kV Contact
    PoE Method Passive
    Button Reset
    USB Port 2.0 Type A (Reserved for Future Use)
    Processor MIPS24K 400 MHz
    System Memory 64 MB
    Code Storage 8 MB
    Certifications CE, FCC, IC
    Wall-Mount Yes
    Operating Temperature -25 to 55°C (-13 to 131° F)
    Operating Humidity 90% Non-Condensing

PoE Configurable Per Port

    Management N/A
    Ports 1-5 Off/24V

LEDs Per Port

    Management Link/Activity
    Ports 1-5 PoE, Speed/Link/Activity

Networking Interfaces

    Management Port (1) 10/100 Ethernet Port
    Ports 1-5 (5) 10/100/1000 Ethernet Ports
