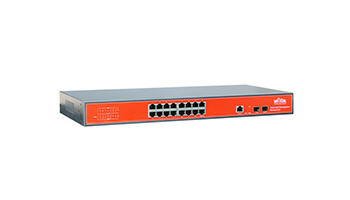

WI-TEK WI-PMS318GF 16xGigabit, 16xPassive PoE 24V, 2xSFP, Managed, RackMount, 350W



What This Product Does

16 gigabit L2 managed switch WI-PMS318GF-24V  provides 16 10/100/1000Mbps ports. The switch provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. Moreover, the switch also comes equipped with 2 gigabit SFP slots, expanding your network flexibly. WI-PMS318GF-24V  is the cost-effective network solution for the ideal small and medium business.



WI-PMS318GF-24V  has robust security and management features. The IP-MAC-Port-VID Binding and Access Control List（ACL) functions protect against broadcast storms, ARP and Denial-of-Service(DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP, mean faster setup and configuration with less downtime.

Secure Networking

Wi-Tek this WI-PMS318GF-24V  provides IP-MAC-Port-VID Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID.



Advanced QoS features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, to ensure that voice and video are always clear, smooth and jitter free.



Abundant Layer 2 features

For more application of layer 2 switches, WI-PMS318GF-24V  supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance. Such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.



HARDWARE FEATURES



18-port PoE managed network switch; 16 x 10/100 / 1000Mbps Gigabit Ethernet port + 2 x 10/100 / 1000Mbps SFP Uplink port; PoE + support IEEE 802.3af / at (Port 1 ~ Port 16), up to 30W max per port (total PoE budget 350W); Ethernet signal transmission up to 100 m; Functions: L2 / L3 / L4 QoS and IGMP snooping / Spanning Tree STP / RTSP / MSTP / Port isolation / 802.3x Flow control / 4K VLANs / SNMP v1 / v2c / v3; Web based interface; 220Vac; dimensions 440x220x44 mm
