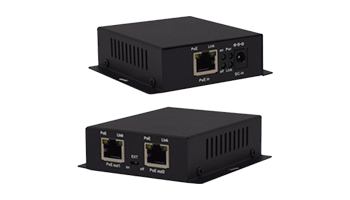

WI-TEK WI-PE31E Extender



The PoE Extender WI-PE31E is a simple device which can extend the 100m standard data transmission to 250m through CAT5e/6 UTP cable, by just plug and play but no additional power supply or set up required. It offers you great flexibility to extend the distance of PoE network to triple, quadruple further in length or more. And this device supports forwards both Ethernet data and PoE power to remote devices For the cost saving and power management purpose, the WI-PE31E can be widely used for City intelligent traffic monitoring system (ITS), safe city, and wireless city; large industrial factory& enterprise security surveillance system; Highway surveillance system, electronic road surveillance, snapshot system; Remote multimedia teaching & campus surveillance, video conferencing systems; Building intercom, wireless communications, video surveillance.



PoE extension switch with PoE power supply; input: 1 x 10 / 1000Mbps Fast Ethernet PoE + port; outputs: 2 x 10 / 100Mbps Fast Ethernet port (PoE + IEEE 802.3af / at up to 30W); Ethernet signal transmission and PoE power supply up to 150 m; power supply 52Vdc (optional additional power adapter WI-PA52, 52V / 1.25A: 11 EUR); compact dimensions 60x88x25 mm, possibility for cascade connection of up to 4 extensions
