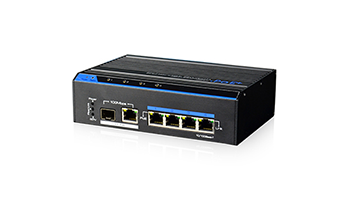

UTEPO UTP7204E-POE-A1 Industrial 4 Ports PoE Fast Ethernet Switch



The un-managed industrial ethernet switch provides one uplink ethernet port and one uplink optical port (100Mbps), four 100Mbps PoE ethernet ports which supporting af/at power supply standard. This product is designed for high definition IP camera network access; which supports one key CCTV model, can achieve VLAN, restrain the Netstorm, protect the information security and prevent the virus spread and Ethernet attack; it also integrates optical interface to achieve the perfect performance which blended with fiber optical transceivers and network switches, to solve the problem of long-distance transmission. The product could be used in network security video surveillance, network project etc.



Complex industrial environments place high demands on product design and environmental adaptability. UTEPO Plug-and-Play Industrial Fast Ethernet PoE Switches are deigned to meet the requirements for stable and reliable transmission and power supply in the industrial sector and meet the industrial protection standard Class 4.



Industrial 6-port PoE network switch; 4 x 10 / 100Mbps Fast Ethernet port + 2 x 10 / 100Mbps Uplink port (1 copper + 1 SFP); PoE + support IEEE 802.3af / at (Port 1 ~ Port 4), up to 30W max per port (total PoE budget 60W); Ethernet signal and PoE + transmission up to 150 m; working temp. -40 ~ + 75C; built-in lightning protection Level 3 lightning 4KV / Level 3 ESD; mounting plates
