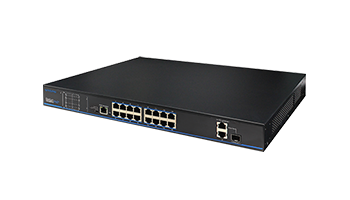

UTEPO UTP3218TS-PSB 16-Port 10/100Mbps PoE+ 2-Port Gigabit RJ-45(1-Port SFP Combo) Ethernet Switch



OVERVIEW

UTP3218TS-PSB provides 16 100M Ethernet RJ-45 downlink ports, 2 Gigabit Ethernet RJ-45 uplink ports and 1 Gigabit combo SFP uplink port. All RJ-45 downlink ports support Power-over-Ethernet (PoE+) and deliver up to 30W power per port. The PoE function can be easily managed via a WEB GUI (http/https).

The switch supports 3 working modes through DIP switch: Default, VLAN and CCTV. Under VLAN and CCTV mode, it supports PoE watchdog features, which can detect and restart the camera automatically if it's frozen. It can be widely used in video security monitoring systems, network projects, etc.



FEATURES AND HIGHLIGHTS

Abundant Interfaces

• 16*10/100Base-TX PoE RJ-45 ports

• 2*10/100/1000Base-T RJ-45 ports

• 1*1000 Base-X combo SFP port

• 1*PoE management port



Power over Ethernet (PoE+)

• Power up to 16 devices that comply with IEEE 802.3af/at standards

• Each PoE port supports a maximum power of 30W

• Circuit protection to prevent the power from interfering with the port

• Long-distance power supply, up to 250 meters

• Support PoE watchdog under VLAN and CCTV mode



PoE management

• Support Total Power Consumption Control

• Support PoE ON/OFF

• Support Single Port 30W max. Power Change and Port Output Priority



Support 3 Working Modes through DIP switch

• Default: all ports are free to communicate, transmission distance: 0~100m.

• VLAN: downlink ports are isolated from each other, but can communicate with uplink ports. Transmission distance: 0~100m. This mode supports PoE watchdog.

• CCTV: the transmission distance is extended up to 250m, but the rate is limited to 10Mbps. This mode supports PoE watchdog.



High Performance Design

• 6kV surge immunity

• 6kV contact discharge, 8kV air discharge ESD protection

• Metal shell design

• Rack/Desktop/wall mounted installation
