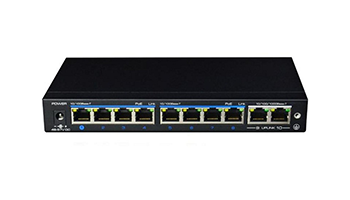

UTEPO UTP3-SW08-TP120-A1 8 Ports PoE Ethernet Switch(Two Gigabit Uplinks)



The 8 ports PoE Ethernet Switch with 8 downlink PoE ports and double 1000Mbps uplink ports is a security surveillance Ethernet Switch which is applicated in high definition network surveillance and security system. The product fully combines the characteristics of security surveillance, Besides, the 8 downlink PoE ports support IEEE802.3af/at standard, The ESD, 6KV lightning protection and surge protection circuits improve product stability. Also the device supports one key CCTV mode which realizes VLAN function, restrains the network storm, protects the information security, prevents the virus spread and cyber attack, fully satisfies the Ethernet video security surveillance system and Ethernet projects needs.



10-port PoE network switch; 8 x 10 / 100Mbps Fast Ethernet port + 2 x 10/100 / 1000Mbps Uplink port; PoE + support IEEE 802.3af / at (Port 1 ~ Port 8), up to 30W max per port (total PoE budget 120W); Ethernet signal transmission up to 100 m; "CCTV mode", providing operation at up to 250 m (10Mbps); built-in lightning protection 6KV lightning / Level 3 ESD; mounting plates
