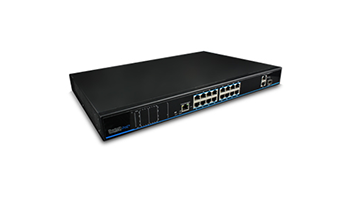

UTEPO UTP1-SW16-TP300 16-port PoE Switch



The 16 ports PoE switch is an unmanaged PoE Ethernet switch along with 16 * 10/100Base-TX downlink PoE ports and 2 * 10/100/1000Base-T uplink Ethernet ports featuring 30-watt 802.3at PoE+ as well as 1 additional Gigabit Combo port. The total PoE power budget is up to 270 watts. It supports web-based PoE management and real-time PoE output LED display.The device can be widely used in video security monitoring systems, network projects, etc.



ADVANTAGES



• Provide 16x 100Mbps downlink PoE Ethernet ports, 2x gigabit uplink Ethernet ports and 1x gigabit Fiber port.

• Downlink Ethernet ports support PoE+, each port supports max. 30W output.

• Support power consumption indication( LED indicates power output status).

• Support manage PoE on/off and power consumption setting via Web.

• Accord with IEEE802. 3, IEEE802. 3u, IEEE802. 3ab, IEEE802. 3 af/at standard.

• 4K MAC address,2. 75Mb cache.

• Quick installation, easy operation, convenient for wall-mounted, desktop and rack installations.
