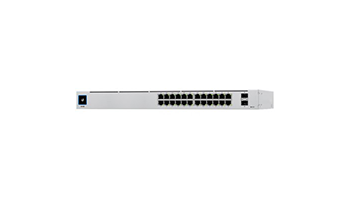

UBIQUITI USW-PRO-24-POE-EU Gigabit Layer2 and Layer3 switch
Ubiquiti USW-Pro-24-POE-EU configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++
Networking Specifications
Number of Ports 24 x (Ethernet/Fast Ethernet/Gigabit Ethernet)
2 x (10 Gbps)
Switching Layers Layer 2
Layer 3
Status LED Indicators Link, Speed, PoE
Networking Compliant Standards IEEE 802.1D(Spanning Tree Protocol)
IEEE 802.1X
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt
Networking Features Auto-sensing per port
Support for RADIUS authentication
8 Ports PoE
16 Ports PoE+
Device Location Plug-in Module
Mounting Capability Rackmount
Interface Provided
LAN 24 (RJ-45)
SFP+ 2
Power
Power Supply Internal
AC 100-240 V, 50/60 Hz
Maximum Output Power 450 W
Power Consumption Operational 50 W
Dimensions & Weight Device
Depth (mm) 285.4 mm
Height (mm) 43.7 mm
Width (mm) 442.4 mm
External Colour Metal
Environment
Maximum Operating Ambient Temperature 40 °C
Maximum Operating Humidity 90 %
Minimum Operating Ambient Temperature -5 °C
Minimum Operating Humidity 10 %
Warranty
Warranty Products Returnable Yes
Warranty Validation Criteria Serial Number
Warranty Term Notes 24 months - for EU
Logistic
Pack Weight Brutto (kg) 2.53 kg
Pack Weight Netto (kg) 1.41 kg
Pieces in pack 1
Box Weight Brutto (kg) 2.53 kg
Retail Packaging Net Weight Carton 0 kg
Retail Packaging Net Weight Plastic 0 kg
Packs in Box 1
Package Type Retail
EAN Code 817882027649
