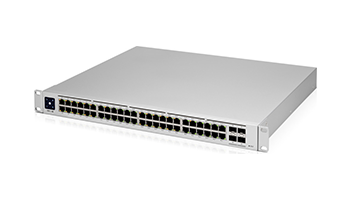

Ubiquiti USW-48 configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports



The USW-48 is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports and 4 SFP ports, providing 1 Gigabit links to your devices and fiber uplink options to your enterprise network. It features a 1.3" touch LCM, and a fanless design. The LCM provides current switch states and the necessary information you need for quick diagnosis.

Managed and configured by the UniFi Network Controller and mobile app, the UniFi Switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.



Mechanical

Dimensions Weight

Enclosure Characteristics

Hardware

Total Non-Blocking Line Rate Max. Power Consumption Forwarding Rate

Power Method

Power Supply

Supported Voltage Range Networking Interfaces

Management Interface Modes

Operating Temperature Operating Humidity Certications

LEDs

System

Ethernet SFP

442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72")

Without Mount: 3.9 kg (8.6 lb) With Mount: 3.99 kg (8.8 lb)

SGCC Steel

52 Gbps

40W

77.376 Mpps

Universal AC Input: 100-240VAC, 50/60 Hz AC/DC, Internal, 60W

100 - 240VAC

(48) 10/100/1000 Mbps Ethernet RJ45 Ports (4) 1 Gbps SFP Ports

Ethernet In-Band

SMB Layer 2 Gigabit Ethernet Switch -15 to 40° C (5 to 104° F)

10 - 90% Noncondensing

CE, FCC, IC

(1) Bootup Animation: Bootup in Progress Firmware Upgrade Icon: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption Steady Blue: Device is Adopted

Green: 1G, Amber: 10/100 Mbps Green: 1G
