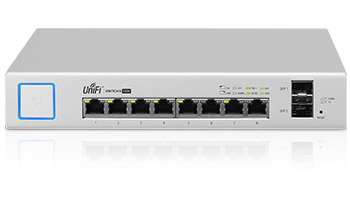

Ubiquiti UniFi Switch 8 150W - US-8-150W

The Ubiquiti Networks UniFi Switch 8 150W is part of the UniFi line of products. The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

Ubiquiti UniFi Switch 8 Key Features

    (8) Gigabit RJ45 Ports
    (2) SFP Ports
    Non-Blocking Throughput: 10 Gbps
    Switching Capacity: 20 Gbps
    Forwarding Rate: 14.88 Mpps
    Maximum Power Consumption: 150W
    Supports POE+ IEEE 802.3at/af and 24V Passive PoE
    Desktop-Mountable (Do not physically stack the US-8-150W.)

Switching Performance

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

PoE+ Flexibility

The UniFi Switch models are available with 8, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure. By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.

Fiber Connectivity

The UniFi Switch provides fiber connectivity options for easy expansion of your networks. Each UniFi Switch model includes two SFP ports for uplinks of up to 1 Gbps. Each 48-port model adds two SFP+ ports for high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.


Ubiquiti UniFi Switch 8 - Technical Specifications
General

    Dimensions 204 x 43 x 235 mm (8.03 x 1.69 x 9.25")
    Weight 1.7 kg (3.75 lb)
    Total Non-Blocking Throughput 10 Gbps
    Switching Capacity 20 Gbps
    Forwarding Rate 14.88 Mpps
    Max. Power Consumption Including PoE Output Excluding PoE Output
    150W 20W
    Power Method 100-240VAC/50-60 Hz, Universal Input
    Power Supply AC/DC, Internal, 150W DC
    LEDs Per Port RJ45 Data Ports SFP Data Ports
    PoE, Speed/Link/Activity Speed/Link/Activity
    Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ethernet Ports
    (2) 1 Gbps SFP Ethernet Ports
    Management Interface Ethernet In-Band
    Certifications CE, FCC, IC
    ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    Operating Temperature -5 to 40° C (23 to 104° F)
    Operating Humidity 5 to 95% Noncondensing
    Shock and Vibration ETSI300-019-1.4 Standard

General

    PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
    24VDC Passive PoE (Pins 4, 5+; 7, 8-)
    Max. PoE+ Wattage per Port by PSE 34.2W
    Voltage Range 802.3at Mode 50–57V
    Max. Passive PoE Wattage per Port 17W
    24V Passive PoE Voltage Range 20-27V
