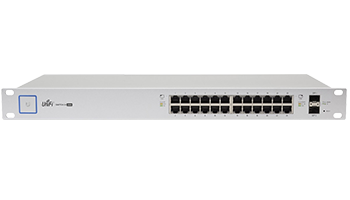

Ubiquiti UniFi Switch 24 250W - US-24-250W

The Ubiquiti UniFi Switch 24 250W is part of the UniFi line of products,
and is a fully managed, PoE+ Gigabit switch, delivering robust performance
and intelligent switching for growing networks.

Ubiquiti UniFi Switch 24 250W - US-24-250W Features

Total Non-Blocking Throughput - 26 Gbps
SFP+ Ports - N/A
SFP Ports - 2
Max. Power Consumption - 250W
Switching capacity: 52 Gbps
Forwarding rate: 38.69 Mpps
Maximum power consumption: 250W
Supports POE+ IEEE 802.3at/af and 24V Passive PoE
Rackmountable
US-24-250W
Switching Performance

The UniFi Switch US-24-250W offers the forwarding capacity to simultaneously
process traffic on all ports at line rate without any packet loss.

PoE+ Flexibility

By default, the UniFi Switch automatically detects 802.3af/at devices so
they automatically receive PoE. For 24V passive PoE devices, manually enable 24V
passive PoE using the UniFi Controller software.

Fiber Connectivity

The UniFi Switch provides fiber connectivity options for easy expansion of your networks.
Each UniFi Switch model includes two SFP ports for uplinks of up to 1 Gbps.


Ubiquiti UniFi Switch US-24-250W - Technical Specifications

US-24-250W

Dimensions 485.04 x 44.45 x 285.6 mm (19.1 x 1.75 x 11.24")
Weight 3.7 kg (8.16 lb)
Total Non-Blocking Throughput 26 Gbps
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps
Max. Power Consumption US-24-250W - 250W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply: AC/DC, Internal, 250W DC
LEDs Per Port
Serial Console Port - N/A
RJ45 Data Ports - PoE, Speed/Link/Activity
SFP Data Ports - Speed/Link/Activity
Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications CE, FCC, IC
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard

PoE Per Port

PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V
