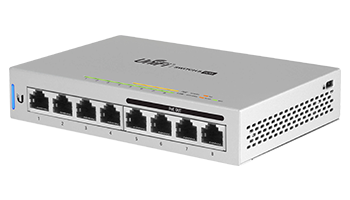

Ubiquiti UniFi Switch 8 Port - US-8-60W

The Ubiquiti UniFi 8 Port Switch US-8-60W features Gigabit Ethernet ports in a compact form factor. The switches are fully manageable, delivering robust performance and intelligent switching for your growing networks.

Ubiquiti US-8 Key Features

    (8) Gigabit RJ45 Ports
    (4) Auto-Sensing IEEE 802.3af PoE Ports
    Non-Blocking Throughput: 8 Gbps
    Switching Capacity: 16 Gbps
    Forwarding Rate: 11.9 Mpps
    Maximum Power Consumption: 12W
    Available in Single-Pack and 5-Pack

The US-8-60W model has four auto sensing PoE ports that can deliver up to 15.4W of power for PoE devices.
Ubiquiti US-8-60W Technical Specification
General

    Dimensions
    148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
    Weight
    432 g (15.24 oz)
    Enclosure Characteristics
    SGCC Steel
    Total Non-Blocking Throughput
    8 Gbps
    Switching Capacity
    16 Gbps
    Forwarding Rate
    11.9 Mpps
    Max. Power Consumption
    12W (Excluding PoE Output)
    Max. PoE Wattage per Port
    15.4W
    Power Method
    48VDC, Max. 2A
    Supported Voltage Range
    57VDC to 44VDC
    Power Supply
    External AC/DC Adapter, 48V, 1.25A
    LEDs
    PoE (Port 8), Speed/Link/Activity (All Ports)
    Networking Interfaces
    (8) 10/100/1000 Mbps RJ45 Ports
    PoE Interfaces
    (4) Ports 5, 6, 7, 8; IEEE802.3af
    ESD/EMP Protection
    Air: ± 24 kV, Contact: ± 24 kV
    Operating Temperature
    -5 to 45° C (23 to 113° F)
    Operating Humidity
    5 to 95% Noncondensing
    Shock and Vibration
    ETSI300-019-1.4 Standard
    Certifications
    CE, FCC, ICDatasheet
