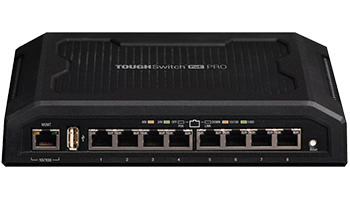

Ubiquiti TOUGHSwitch 8-Port PoE PRO (TS-8-PRO)


The Ubiquiti TOUGHSwitch 8-Port PoE PRO is a cost effective 8-port Gigabit switch with 24V PoE support for each port. The TOUGHSwitch 8-Port can power Ubiquiti airMAX, UniFi, and airVision devices.

Ubiquiti TOUGHSwitch PRO Key Features

Ports - 8 Gigabit PoE
PoE - 24V/48V Configurable Passive
150 W Power
TOUGHSwitch PoE Configuration Interface
Tough Full Metal and Rubber Casing
Product Model Number: TS-8-PRO
Gigabit Ethernet performance combined with industrial strength construction and a 150Watt power supply.
The TOUGHSwitch PRO version is capable of powering up to eight 24V or 48V devices with software selectable
output voltage control. It is the ideal PoE solution for use with Ubiquiti airMAX base station deployments


8-Port TOUGHSwitch PoE Technical Specifications
General

Dimensions 210 x 185 x 41 mm
Weight 1.24 kg
Power Input 110-120VAC / 210-230VAC
Max. Power Consumption 150 W
PoE Out Voltage Range 45-48VDC / 22-24VDC
Max. PoE Wattage Per Gigabit Port 18W
ESD Rating 24 kV Air / 24 kV Contact
PoE Method Passive
Button Reset
USB Port 2.0 Type A (Reserved for Future Use)
Processor MIPS24K 400 MHz
System Memory 64 MB
Code Storage 8 MB
Certifications CE, FCC, IC
Operating Temperature -25 to 55°C (-13 to 131° F)
Operating Humidity 90% Non-Condensing
PoE Configurable Per Port

Management N/A
Ports 1-8 Off/24V/48V
LEDs Per Port

Management Link/Activity
Ports 1-8 PoE, Speed/Link/Activity
Networking Interfaces

Management Port (1) 10/100 Ethernet Port
Ports 1-8 (8) 10/100/1000 Ethernet Ports
