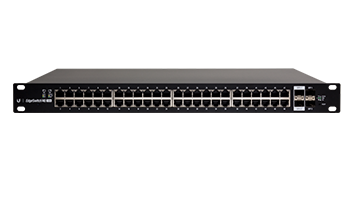

Ubiquiti EdgeSwitch 48 750W Switch (ES-48-750W)

The Ubiquiti EdgeSwitch 48 750W delivers robust performance and intelligent switching for growing networks. The ES-48-750W delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

The EdgeSwitch 48 750W is a fully managed, PoE+ Gigabit switch, offering an extensive suite of advanced Layer-2 switching features and protocols, along with Layer-3 routing capability.

Ubiquiti EdgeSwitch ES-48-750W Key Features

    Total Non-Blocking Throughput - 70 Gbps
    Gigabit RJ45 Ports - 48
    SFP+ Ports - 2
    SFP Ports - 2
    Max. Power Consumption - 750W
    Supports POE+ IEEE 802.3at/af and 24V Passive PoE
    Rackmountable
    Product Model Number: ES-48-750W

Ubiquiti EdgeSwitch ES-48-750W Switch - Technical Specifications
ES-48-500W, ES-48-750W

    Dimensions 485.04 x 44.45 x 347.6 mm (19.1 x 1.75 x 13.69")
    Weight 5.3 kg (11.68 lb)
    Total Non-Blocking Throughput 70 Gbps
    Max. Power Consumption
    ES-48-500W
    ES-48-750W
    500W
    750W
    Power Method 100-240VAC/50-60 Hz, Universal Input
    Power Supply
    ES-48-500W
    ES-48-750W
    AC/DC, Internal, 500W DC
    AC/DC, Internal, 750W DC
    LEDs Per Port
    RJ45 Data Ports
    SFP+/SFP Data Ports
    PoE, Speed/Link/Activity
    Speed/Link/Activity
    Networking Interfaces (48) 10/100/1000 Mbps RJ45 Ethernet Ports
    (2) 1/10 Gbps SFP+ Ethernet Ports
    (2) 1 Gbps SFP Ethernet Ports
    Management Interface Ethernet In/Out Band
    Certifications CE, FCC, IC
    Rackmount Yes, 1U High
    ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
    Operating Temperature -5 to 40° C (23 to 104° F)
    Operating Humidity 5 to 95% Noncondensing
    Shock and Vibration ETSI300-019-1.4 Standard

PoE Per Port

    PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
    24VDC Passive PoE (Pins 4, 5+; 7, 8-)
    Max. PoE+ Wattage per Port by PSE 34.2W
    Voltage Range 802.3at Mode 50–57V
    Max. Passive PoE Wattage per Port 17W
    24V Passive PoE Voltage Range 20-27V
