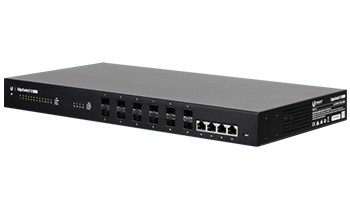

Ubiquiti EdgeSwitch Fiber 12 Port Gigabit Switch - ES-12F

The EdgeSwitch Fiber is a fully managed, Gigabit fiber switch, delivering robust performance and intelligent switching for high‑bandwidth networks. The EdgeSwitch Fiber offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Ubiquiti EdgeSwitch 12 Fiber Key Features

    Non-Blocking Throughput Switching
    High Performance and Low Latency
    Gigabit Ethernet SFP and RJ45 Ports

The EdgeSwitch Fiber offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the EdgeSwitch Fiber supports up to 16 Gbps.

The EdgeSwitch Fiber offers high performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP ports, eight of which also support 100 Mbps. For copper connectivity, the EdgeSwitch Fiber offers four Gigabit RJ45 ports.
Ubiquiti EdgeSwitch 12 Fiber Technical Specification
ES-12F

    Dimensions 443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
    Weight - Rack-Mount Brackets Included 2.68 kg (5.91 lb) Rack-Mount Brackets Excluded2.59 kg (5.71 lb)
    Enclosure Characteristics SGCC Steel
    Total Non-Blocking Throughput 16 Gbps
    Switching Capacity 32 Gbps
    Forwarding Rate 23.81
    Mpps Max. AC Power Consumption 56W
    Power Method AC DC 100-240VAC/50-60 Hz, Universal Input DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector
    Supported Voltage Range 100 to 240VAC 25 to 16VDC
    Power Supply AC/DC, Internal, 56W DC
    LEDs Per Data Port Speed/Link/Activity
    Networking Interfaces (8) 100/1000 Mbps SFP Ethernet Ports (4) 1000 Mbps SFP Ethernet Ports (4) 10/100/1000 Mbps RJ45 Ethernet Ports
    Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
    Certifications CE, FCC, IC
    Rackmount Yes, 1U High
    ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
    Operating Temperature -5 to 40° C (23 to 104° F)
    Operating Humidity 5 to 95% Noncondensing
    Shock and Vibration ETSI300-019-1.4 Standard

Software Information - Core Switching Features

    ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED)
    IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
    IEEE 802.1D: Spanning Tree Compatibility
    IEEE 802.1S: Multiple Spanning Tree Compatibility
    IEEE 802.1W: Rapid Spanning Tree Compatibility
    IEEE 802.1Q: Virtual LANs with Port-Based VLANs
    IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping
    IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
    IEEE 802.3: 10BASE-T • IEEE 802.3u: 100BASE-T
    IEEE 802.3ab: 1000BASE-T
    IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol
    IEEE 802.3ac: VLAN Tagging
    IEEE 802.3ad: Link Aggregation
    IEEE 802.3x: Flow Control
    IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (GARP)
    IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10 (GMRP)
    IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2 (GVRP)
    RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
    RFC 5171: Unidirectional Link Detection (UDLD) Protocol

Advanced Layer 2 Features

    Broadcast Storm Recovery
    Broadcast/Multicast/Unknown Unicast Storm Recovery
    DHCP Snooping • IGMP Snooping Querier
    Independent VLAN Learning (IVL) Support
    Jumbo Ethernet Frame Support
    Port MAC Locking
    Port Mirroring
    Protected Ports
    Static MAC Filtering
    TACACS+
    Voice VLANs
    Unauthenticated VLAN
    Internal 802.1X Authentication Server
