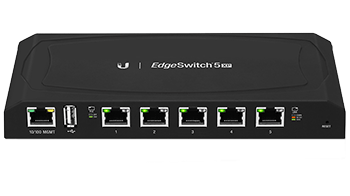

The Ubiquiti EdgeSwitch 5 XP - 5-Port Gigabit PoE Switch (ES-5XP) is a cost‑effective, 5-port Gigabit switch with 24V PoE support

Ubiquiti EdgeSwitch ES-5XP Key Features

• 5 Gigabit PoE Ports
• 24V Configurable Passive PoE
• EdgeSwitch XP Configuration Interface
• Wall-Mountable

The EdgeSwitch 5 XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.
To connect your PoE devices, simply enable PoE in the easy-to-use EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non‑PoE devices can be connected.

Clean Industrial Design
The EdgeSwitch 5 XP is designed to simplify deployment, consolidating the delivery of data and passive PoE (as needed).

Convenient PoE Support
The EdgeSwitch 5 XP supports 24V passive PoE to power multiple devices on your network.

Ubiquiti EdgeSwitch ES-5XP - Technical Specifications

General

• Dimensions: 197 x 87.5 x 27.3 mm
• Weight: 250g
• Power Input: 24VDC, 2.5A Power Adapter (Included)
• Max. Power Consumption: 60 W
• PoE Out Voltage Range: 22-24VDC
• Max. PoE Wattage Per Data Port: 11.5 W
• ESD Rating: 24 kV Air / 24 kV Contact
• PoE Method: Passive
• Button: Reset
• USB Port: 2.0 Type A (Reserved for Future Use)
• Processor: MIPS 24K, 400 MHz
• System Memory: 64 MB
• Code Storage: 8 MB
• Certifications: CE, FCC, IC
• Wall-Mount: Yes
• Operating Temperature: -25 to 55°C (-13 to 131° F)
• Operating Humidity: 90% Non-Condensing

PoE Configurable Per Port

• Management Port: N/A
• Data Ports: Off/24V

LEDs Per Port

• Management Port: Power /Link/Activity
• Data Ports: PoE, Speed/Link/Activity

Networking Interfaces

• Management Port: 1 x 10/100 Ethernet Port
• Data Ports: 5 x 10/100/1000 Ethernet Ports
