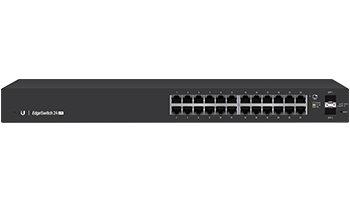

Ubiquiti EdgeSwitch Lite 24 Port

Build and expand your network with Ubiquiti EdgeSwitch ES-24-Lite part of the EdgeMAX® line of products. The EdgeSwitch Lite is a fully managed, Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch Lite offers an extensive suite of advanced Layer 2 switching features and protocols, and also provides Layer 3 routing capability. The EdgeSwitch Lite offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 24-port models support up to 26 Gbps, while the 48-port models support up to 70 Gbps.

Ubiquiti EdgeSwitch ES-24-Lite Key Features

    Model: ES-24-Lite
    (24) Gigabit RJ45 Ports
    (2) SFP Ports
    (1) Serial Console Port
    Non-Blocking Throughput: 26 Gbps
    Switching Capacity: 52 Gbps
    Forwarding Rate: 38.69 Mpps
    Maximum Power Consumption: 25W
    Rack- or Wall-Mountable
    Quiet, Fanless Operation
    Option: Redundant Power Supply Unit (PSU), Used as a Hot Spare
    Ubiquiti Networks EdgeSwitch PSU, 56W
    External PSU (Minimum Power: 25W, 25 to 16V) with 2.5 mm DC Power Inline Connector

The EdgeSwitch Lite provides fiber connectivity options for your growing networks. The 24-port models include two SFP ports, providing up to 1 Gbps uplinks. For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing up to 10 Gbps uplinks. Designed for convenient management, the EdgeSwitch Lite Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.
Ubiquiti EdgeSwitch ES-24-Lite - Technical Specifications
General

    Dimensions 443 x 43 x 221 mm (17.44 x 1.69 x 8.70")
    Weight
    Rack-Mount Brackets Included 2.6 kg (5.7 lb)
    Rack-Mount Brackets Excluded 2.51 kg (5.53 lb)
    Total Non-Blocking Throughput 26 Gbps
    Switching Capacity 52 Gbps
    Forwarding Rate 38.69 Mpps
    Max. AC Power Consumption 25W
    Power Method 100-240VAC/50-60 Hz, Universal Input DC 25V/25W Min.
    Power Supply AC/DC, Internal, 25W DC
    LEDs Per Port
    Serial Console Port N/A
    RJ45 Data Ports Speed/Link/Activity
    SFP Data Ports Speed/Link/Activity
    Networking Interfaces, (24) 10/100/1000 Mbps RJ45 Ethernet Ports, (2) 1 Gbps SFP Ethernet Ports
    Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
    Certifications CE, FCC, IC
    Rackmount Yes, 1U High
    ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
    Operating Temperature -5 to 40° C (23 to 104° F)
    Operating Humidity 5 to 95% Noncondensing
    Shock and Vibration ETSI300-019-1.4 Standard

Core Switching Features

    ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED)
    IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
    IEEE 802.1D: Spanning Tree Compatibility
    IEEE 802.1S: Multiple Spanning Tree Compatibility
    IEEE 802.1W: Rapid Spanning Tree Compatibility
    IEEE 802.1Q: Virtual LANs with Port-Based VLANs
    IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping
    IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
    IEEE 802.3: 10BASE-T
    IEEE 802.3u: 100BASE-T
    IEEE 802.3ab: 1000BASE-T
    IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol
    IEEE 802.3ac: VLAN Tagging
    IEEE 802.3ad: Link Aggregation
    IEEE 802.3x: Flow Control
    IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (GARP)
    IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10 (GMRP)
    IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2 (GVRP)
    RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
    RFC 5171: Unidirectional Link Detection (UDLD) Protocol

Advanced Layer 2 Features

    Broadcast Storm Recovery
    Broadcast/Multicast/Unknown Unicast Storm Recovery
    DHCP Snooping
    IGMP Snooping Querier
    Independent VLAN Learning (IVL) Support
    Jumbo Ethernet Frame Support
    Port MAC Locking
    Port Mirroring
    Protected Ports
    Static MAC Filtering
    TACACS+
    Voice VLANs
    Unauthenticated VLAN
    Internal 802.1X Authentication Server

Platform Specifications

    DHCP Server
    Maximum Number of Pools: 8
    Maximum Number of Leases (Total): 128
    Routing
    Number of Routes: 16
    Number of Routing Interfaces: 15
    VLANs: 255
    MAC Addresses: 8k
    MSTP Instances: 4
    LAGs: 6
    ACLs: 100 with 10 Rules per Port
    Traffic Classes (Queues): 8

System Facilities

    Event and Error Logging Facility
    Run-Time and Configuration Download Capability
    PING Utility
    FTP/TFTP Transfers via IPv4/IPv6
    Malicious Code Detection
    BootP and DHCP
    RFC 2021: Remote Network Monitoring Management Information Base Version 2
    RFC 2030: Simple Network Time Protocol (SNTP)
    RFC 2819: Remote Network Monitoring Management Information Base
    RFC 2865: RADIUS Client
    RFC 2866: RADIUS Accounting
    RFC 2868: RADIUS Attributes for Tunnel Protocol Support
    RFC 2869: RADIUS Extensions
    RFC 3579: RADIUS Support for EAP
    RFC 3580: IEEE 802.1X RADIUS Usage Guidelines
    RFC 3164: BSD Syslog Protocol

Management

    Web UI
    Industry-Standard CLI
    IPv6 Management
    Password Management
    Autoinstall Support for Firmware Images and Configuration Files
    SNMP v1, v2, and v3
    SSH 1.5 and 2.0
    SSL 3.0 and TLS 1.0
    Secure Copy (SCP)
    Telnet (Multi-Session Support)

Layer 3

    Static Routing
    Policy Based Routing

QoS

    Access Control Lists (ACLs), Permit/Deny Actions for Inbound IP and Layer 2 Traffic Classification Based on:
    Time-Based ACL
    Source/Destination IP Address
    TCP/UDP Source/Destination Port
    IP Protocol Type
    Type of Service (ToS) or Differentiated Services (DSCP) Field
    Source/Destination MAC Address
    EtherType
    IEEE 802.1p User Priority
    VLAN ID
    RFC 1858: Security Considerations for IP Fragment Filtering
    Optional ACL Rule Attributes
    Assign Flow to a Specific Class of Service (CoS) Queue
    Redirect Matching Traffic Flows
    Differentiated Services (DiffServ)
    Classify Traffic Based on Same Criteria as ACLs
    Mark the IP DSCP or Precedence Header Fields, Optional
    Police the Flow to a Specific Rate with Two-Color Aware Support
    RFC 2474: Definition of the Differentiated Services Field (DS field) in the IPv4 and IPv6 Headers
    RFC 2475: An Architecture for Differentiated Services
    RFC 2597: Assured Forwarding Per-Hop Behavior (PHB) Group
    RFC 3246: An Expedited Forwarding PHB
    RFC 3260: New Terminology and Clarifications for DiffServ
    Class of Service (CoS) Queue Mapping Configuration
    AutoVoIP: Automatic CoS Settings for VoIP
    IP DSCP-to-Queue Mapping
    Configurable Interface Trust Mode (IEEE 802.1p, DSCP, or Untrusted)
    Interface Egress Shaping Rate
    Strict Priority versus Weighted Scheduling per Queue
