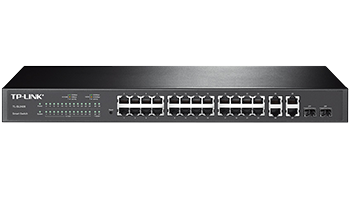

TP-LINK TL-SL2428 v.1 24-port Smart Switch, 24x 10/100TX + 4 Gigabit Ports, 2x Combo SFP Slots

124.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 22286

Βάρος: 4.000 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

24-Port 10/100Mbps + 4-Port Gigabit Smart Switch TL-SL2428

    24 10/100Mbps RJ45 Ports, 4 10/100/1000Mbps RJ45 Ports and 2 Combo Gigabit SFP Slots
    Integrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
    L2/L3/L4 QoS and IGMP snooping optimize voice and video application
    WEB/CLI managed modes, SNMP, RMON bring abundant management features

    Features

Layer 2 Features

    Link Aggregation Control Protocol (LACP)
    Up to 512 VLANs simultaneously(out of 4K VLAN IDs)
    STP/RSTP/MSTP
    IGMP Snooping

Quality of Service

    4 priority queues
    Support IEEE 802.1P
    DSCP QoS
    Rate limit feature

Security Strategies

    Access Control List (L2~L4 ACL)
    Port Security
    Storm Control
    SSL and SSH encryptions

Management

    Web-based GUI
    Command Line Interface(Telnet)
    SNMP v1/v2c/v3
    RMON (1,2,3,9 group)

HARDWARE FEATURES


Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
Interface	24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 4 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Combo Gigabit SFP Slots
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF
Fan Quantity	Fanless
Power Supply	100~240VAC, 50/60Hz
Power Consumption	Maximum: 12.48W (220V/50Hz)
Dimensions ( W x D x H )	17.37.11.7 in.(44018044 mm)

PERFORMANCE
Bandwidth/Backplane	12.8Gbps
Packet Forwarding Rate	9.5Mpps
MAC Address Table	8k

SOFTWARE FEATURES
Quality of Service	Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow-based Rate Limiting Voice VLAN
L2 Features	IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control
VLAN	Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Access Control List	L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
Security	SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown-unicast Storm Control
Management	Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS

OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SL2428; Power Cord; Installation Guide; Resource CD; Rackmount Kits; Rubber Feet
System Requirements	Microsoft® Windows® XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
