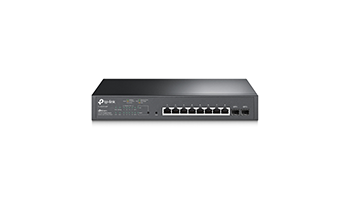

TP-LINK TL-SG2210MP JetStream 10-Port Gigabit Smart PoE Switch with 8-Port PoE+



150 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W*.

Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.



HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p



Interface

• 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)

• 2× 100/1000 Mbps SFP Slots



Network Media

• 10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)

• 100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)

• 100BASE-FX: MMF, SMF

• 1000BASE-X: MMF, SMF

Fan Quantity 1

Physical Security Lock Yes



PoE+ Ports(RJ45)

• Standard: 802.3at/af compliant

• PoE+ Ports: 8 Ports

• Power Supply: 150 W



Dimensions ( W x D x H ) 11.6 x 7.1 x 1.7 in (294 x 180 x 44 mm)

Mounting Rack Mountable



Max Power Consumption

• 12.2 W (110 V / 60 Hz with no PD connected)

• 173.9 W (110 V / 60 Hz with 150 W PD connected)



Max Heat Dissipation

• 41.63 BTU/h (with no PD connected)

• 539.35 BTU/h (with 150 W PD connected)



PERFORMANCE



Switching Capacity 20 Gbps

Packet Forwarding Rate 14.9 Mpps

MAC Address Table 8K

Packet Buffer Memory 4.1 Mbit

Jumbo Frame 9 KB
