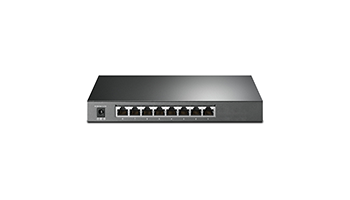

TP-LINK TL-SG2008P JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+



62 W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62 W*.

Full Gigabit Ports: 4× gigabit PoE+ ports and 4× gigabit non-PoE ports provide high-speed connections.

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management: Cloud access and Omada app for ultra convenience and easy management.

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.



HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x



Interface

• 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)

• Auto-Negotiation/Auto MDI/MDIX



Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)



Fan Quantity Fanless



Power Supply

• External Power Adapter (Output: 53.5 VDC/ 1.31 A)



Power Consumption

• 7.9 W (220 V/50 Hz) (no PD connected)

• 79.2 W (220 V/50 Hz) (with 62 W PD connected)



PoE Ports (RJ45)

• Standard: 802.3af/at compliant

• PoE Ports: 4 Ports

• Power Supply: 62 W*



Dimensions ( W x D x H ) 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm)



PERFORMANCE



Bandwidth/Backplane 16 Gbps

MAC Address Table 8k

Packet Buffer Memory 4.1 Mbit

Jumbo Frame 9 KB
