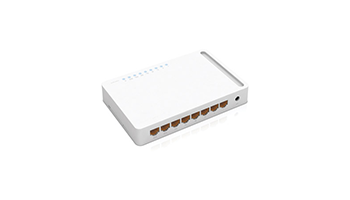

8-Port Gigabit  Desktop Switch

8*10/100/1000Mbps auto-negotiation RJ45 Ports
Supports Auto MDI/MDIX, plastic case

    - Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x standards.
    - 8 10/100/1000Mbps auto-negotiation ports.
    - Supports flow control for each port.
    - Supports store and forward switching scheme capability.
    - Supports NWay auto-negotiation for all ports.
    - Supports auto MDI/MDIX for each port.
    - Supports per-port bandwidth control.
    - Supports PHY register read/write access.

HARDWARE FEATURES

Standards

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x

Interface

• 8*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)

Power Supply

• 9V DC/0.8A

Dimensions

• 163mm x 106mm x 25mm (L x W x H)

LED

• Power, Link/Activity

MAC Address Learning

• Auto-learning, Auto update

MAC Address Table

• 8K

Network Media

• 10Base-T: UTP Cat 3, 4, 5 cable (100m, max.)
• EIA/TIA-568 100Ω STP (100m max.)
• 100Base-Tx: UTP Cat 5, 5e cable (100m, max.)
• EIA/TIA-568 100Ω STP (100m max.)
• 1000Base-T: UTP Cat 5, 5e cable (100m, max.)

Frame Filtering

• 10Mbps: 14,880pps
• 100Mbps: 148,800pps
• 1000Mbps: 1,488,000pps

Backup Bandwidth

• 16Gbps

Transmission Method

• Store-and-forward

Environment

• Operating Temperature: 0~40 Celsius
• Storage Temperature: -40~70 Celsius
