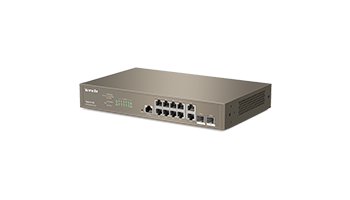

Tenda TEG5312F L3 Managed Switch 10 Lan Port 2 SFP Port



Layer-3 Routing Engine，High-Efficiency Fast Forwarding

Supports Layer 3 www routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing and forwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission, there is no need to go through a router, and the forwarding speed is faster!



Map Visualization

It supports auto discovery of ONVIF based IP camera and access point, and also supports automatically topology generate.



Hardware

Network standards

IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3ad、 IEEE802.3z、 IEEE802.3x、IEEE802.1p、 IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s

LED Indicator

1*Link/Act LED indicator

1*Power LED indicator

1*SYS LED indicator

Interfaces

10*10/100/1000 Base-T Ethernet ports

2*1000 Base-X SFP ports

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Level of protection

Lightning protection for ports: 6kV

Lightning protection for power: 6kV

ESD:

Air discharge: ±10kV

Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

24Gbps

Packet forwarding rate

17.90Mpps

Buffer

12Mb

MAC address table

16K

Jombo frame

10K

PoE power supply management

N/A

PoE budget

N/A

Input voltage

100-240V AC 50/60Hz

Power consumption

Full load: ＜19W

Empty load: ＜9W

Dimension

294.0mmx179.6mmx44.0mm

Mounting

Desktop mounting: support

Wall mounting: support

Rack mounting:non-support

Energy Efficient

Support

Environment

Operating temperature: 0°C - 45℃

Storage temperature: -40°C - 70°C

Operating humidity: (10% - 90%) RH, non-condensing

Storage humidity: (5% - 90%) RH, non-condensing

Certification

FCC、CE、RoHS
