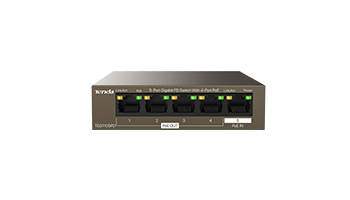

Tenda TEG1105PD 5-Port Gigabit PD Switch With 4-Port PoE



Gigabit speed without reduction within 200m, Stable transmission without dropping

As a relay, the switch can extend the data transmission distance to 325 meters at most and offer long-distance PoE power supply through multiple PoE ports. Suitable for medium and long-distance wired monitoring scenarios or low-power wireless coverage scenarios such as enterprise parks, factories, schools, etc.



Cut costs,Practical & Stable,Your Better Choice



TEG1105PD does not require independent power supply, just plug and play, no need to consider the power supply during the network deployment; in addition, there is no need to pull out multiple network cables from the PoE switch (PSE) in the data equipment room to supply power to multiple PoE powered devices (PD). Therefore, the network deployment cost can be greatly saved while ensuring the quality of the project.



Hardware

Network standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at

LED Indicator

1* Power LED indicator

4* PoE LED

indicators

5* Link/Act LED indicators

Interfaces

4*10/100/1000 Base-T Ethernet Ports(Data/PoE

UT)

1*10/100/1000 Base-T Ethernet Port(Data/PoE IN)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

N/A

Dimension

100.0 mm x 100.0 mm x 26.0 mm

Level of protection

Lightning protection for ports: 6kV

Lightning protection for power: 6kV

ESD:

Air discharge: ±10kV

Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

10 Gbps

Packet forwarding rate

7.44Mpps

Buffer

1 Mb

MAC address table

2K

Jombo frame

9K

PoE budget

Single port: AF: 15.4W

Power consumption

/

Input voltage

50-57V DC, 0.6A

Mounting

Desktop mounting: support

Wall mounting: non-support

Rack mounting : non-support

Environment

Operating Temperature: 0℃~45℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS
