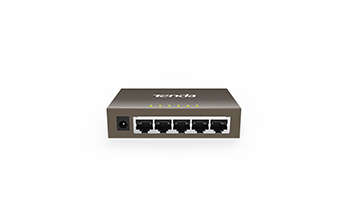

TENDA TEG1005D 5-Port Gigabit Desktop Switch



Lightning protection for each port

Integrated with a professional lightning protection circuit that offers 6KV lightning protection to each port to effectively prevent lightning-induced current from damaging the ports or switch, so as to ensure the surveillance system stability.



Extraordinary heat dissipation

A housing made of 0.8 mm galvanized industrial-grade steel plates for excellent durability has a good heat dissipation performance, which can ensure stable switch operation, a long service life, and more reliable outdoor security surveillance.



Stay connected for 7x24 hours

5 * 10/100/1000Mbps auto-negotiation RJ45 ports that support wire-speed forwarding and large-capacity cache, ensuring smooth surveillance video playback and stable data transmission for 7x24 hours.



User-friendly design

RJ45 ports and LED indicators are located on the same side and aligned vertically for more intuitively showing network status. The RJ45 ports and the power port are designed in the same orientation to reduce the mounting space requirement, allowing the switch to fit into the slimmest outdoor weak current box.



Standard&Protocol: IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE802.3ab

Transmission Media: 100BASE-TX/1000BASE-T: Cat.5, Cat.5e or Above（≤100m）UTP/STP

Interface: 5*10/100/1000Mbps auto-negotiation RJ45 ports, auto MDI/MDIX

Lightning Protection: 6KV for 5 Ports

LED indicator: 1*power LED，5*10/100/1000Mbps Link/Act LEDs

Dimension: 100mm×64mm×25mm(W*D*H)

Forwarding Mode: Store-and-Forward

MAC Address Table: 2K

Forwarding Rate:

Backbound Bandwidth:10Gbps

Power Input: 100~240V AC，50/60Hz

Power Output: 5V DC，0.6A

TemperatureOperation Temperature: -10°C~45°C

Storage Temperature: -40°C~70°C

Humidity: Operation Humidity 10%~90% RH（non-condensing）

Storage Humidity: 5%~90% RH（non-condensing）
