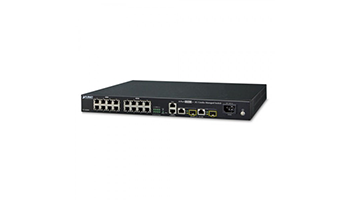

Planet VC-820M 8-Port VDSL2 + 2G TP/SFP Managed Switch



High Performance VDSL2 Data Rate over Existing Phone Lines

PLANET VC-820M is an 8-Port VDSL2 Managed CO (Central Office) Switch with 2 Gigabit TP/SFP combo interfaces. The VDSL2 CO Switch is perfectly designed for the networking applications of communities, network service providers, SIs, IP surveillance providers, etc. It is based on two core networking technologies, Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). Worked with PLANET VC-23x series of VDSL2 CPE (Customer Premises Equipment), the VC-820M offers the absolutely fastest data transmission speeds over the existing copper telephone lines providing an ideal solution to the last-mile connectivity.



Each VDSL2 interface of the VC-820M provides two copper phone ports, one for VDSL2 connection and the other one for POTS (Plain Old Telephone Service) connection. To share the existing phone line with POTS, the VC-820M has a built-in POTS splitter that helps the voice over telephone and network data to transmit over the same wire without being interrupted.



VDSL Interface

8 x RJ11 connectors for VDSL2 connection

8 x RJ11 connectors for POTS connection

Built-in POTS splitter for each VDSL port

Auto-speed function for VDSL2 link (by distance and cable quality)



Ethernet Interface

2 Gigabit TP and SFP shared combo interfaces

Auto-MDI/MDI-X detection on Gigabit RJ45 port



VDSL2 Features

Cost-effective VDSL2 link and central management solution

ITU-T G.993.2 VDSL2 standard

DMT (Discrete Multi-Tone) line coding VDSL

Up to 100/100Mbps symmetric data rate

Copper wiring distance up to 1km

Selectable target data rate and target SNR margin

Built-in surge protection against surge damage from high energy spike

Voice and data communication can be shared on the existing telephone wire simultaneously

Supports downstream/upstream rate control on each port



Layer 2 Features

High performance of Store-and-Forward architecture and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth

Broadcast/multicast/unicast storm control

Supports VLAN

- IEEE 802.1Q tag-based VLAN- Port-based VLAN- Q-in-Q tunneling (VLAN stacking)- GVRP for dynamic VLAN management- Private VLAN edge (PVE/protected port)

Link Aggregation

- IEEE 802.3ad LACP (Link Aggregation Control Protocol)- Cisco ether-channel (static trunk)

Spanning Tree Protocol

- STP, IEEE 802.1D- MSTP, IEEE 802.1s

Port mirroring to monitor the incoming or outgoing traffic on a particular port



Quality of Service

4 priority queues on all switch ports

Traffic classification:

- IEEE 802.1p CoS- IP ToS/DSCP- Port-based priority

Strict priority and Weighted Round Robin (WRR) CoS policies



Multicast

Supports IGMP snooping v1 and v2

IGMP querier mode support



Security

IEEE 802.1X port-based network access control protocol

RADIUS users access authentication

L2/L3/L4 Access Control List (ACL)

MAC filtering and source IP-MAC/port-binding

Port security for source MAC address entries filtering



Management

Switch Management Interface

- Telnet command line interface- Web switch management- SNMP v1, v2c, v3 switch management- SSL switch management

DHCP client for IP address assignment

Link Layer Discovery Protocol (LLDP) for easy network management

DHCP option82 and DHCP relay

Built-in Trivial File Transfer Protocol (TFTP) client

Firmware upgrade via TFTP or HTTP

Configuration upload/download via TFTP or HTTP

Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)

SNMP trap for interface Link Up and Link Down notification

Reset button for system management

RJ45 console interface for switch basic management and setup
