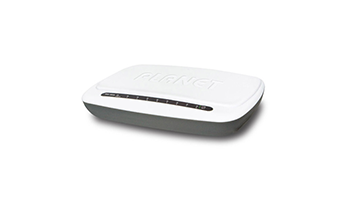

Planet Switch SW-804 8-Port 10/100Mbps Desktop Fast Ethernet Switch



High-speed 10/100Mbps Workgroup Switch

PLANET Fast Ethernet Switch SW-804 provides business and home users with a cost-effective integrated system of small-office / home-office networking. It is with compact-sized plastic case design and just right for the network of 10 to 50 users.



Stable Fast Ethernet Switch Performance

The SW-804 also supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity. The high performance throughput (filtering / forwarding rate: 14,880 packets per second in 10Mbps, and 148,800 packets per second in 100Mbps) and 448K bit packet buffer help the SW-804 to boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path. With an intelligent address recognition algorithm, the SW-804 could recognize up to a 1K different MAC address and provide 1.6Gbps switching capacity, which makes the SW-804 offer wire-speed packets transfer performance without risk of packet loss.



Flexible Desktop Size Design

The SW-804 is the fancy-shaped plastic model to fit into space-limited environment. With concepts of "Easy to install and use", "Compact sized design", and "Simple troubleshooting", the SW-804 provides cost-conscious business and home users with the foundation from an integrated system of small-office / home-office networking.



RJ-45 Interface





Switching



Hardware



Hardware Specifications

Hardware Version 3

10/100Base-TX Ports 8 auto MDI/MDIX ports

LED Display One for Power, One for Link / Act per port

Enclosure Plastic

Dimensions (W x D x H) 168 x 100 x 29 mm

Weight (g) 152g

Power Requirements (External power adapter) 5V DC, 1A

Power Consumption (100M Full operation) 2.5 watts / 8.5 BTU

Switch Specifications

Switch Processing Scheme Store-and-Forward

Address Table 1K

Share Data Buffer 448k

Flow Control Back pressure half duplex, IEEE 802.3x pause frame full duplex

Switch Fabric 1.6Gbps

Throughput (packet per second) 1.19Mpps

Maximum Packet Size 1536bytes

Standards Conformance

Standards Compliance IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)

IEEE 802.3x (Full-duplex Flow Control)

Regulation Compliance FCC Part 15 Class B, CE

Environments

Temperature Operating: 0~50 degrees C

Storage: -10~70 degrees C

Humidity Operating: 5~95%

Storage: 5~95% (non-condensing)
