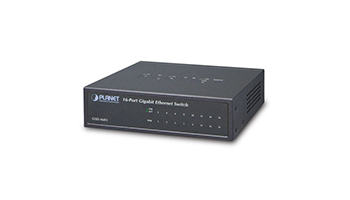

Planet Switch GSD-1603 16-Port 10/100/1000BASE-T Desktop Gigabit Ethernet Switch, Metal (External Power)





Cost-effective Gigabit Solution for SOHO and Department Networking

PLANET GSD-1603 Gigabit Ethernet Switch provides 16 RJ45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the suitable transmission speed and half/full duplex mode of the attached devices with its 16 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSD-1603 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.

Energy Saving

The GSD-1603 incorporates two advanced green networking technologies and is able to provide power saving up to 40% less energy but maintains high performance efficiently.

(1) Hibernation Link Down power saving

The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power consumption for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-1603 will automatically adjust power usage of the ports that are shut down or not connected to network device.

(2) Intelligent scales power based on cable length

Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-1603 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-1603 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.



Physical Port





Layer 2 Features





Hardware Features





Hardware Specifications

10/100/1000BASE-T Ports 16 auto MDI/MDIX RJ45 ports

LED Display One for Power, one for Link/Act per port

Enclosure Metal

Dimensions (W x D x H) 155 x 118 x 46 mm

Weight (g) 538g

Power Requirements(External power adapter) 12V DC, 1A

Power Consumption 10 watts/34 BTU

Switch Specifications

Switch Processing Scheme Store-and-Forward

Address Table 8K

Flow Control Back pressure half duplex

IEEE 802.3x pause frame full duplex

Switch Fabric 32Gbps

Throughput(packet per second) 23.8Mpps@64 bytes

Jumbo packet size 9K

Standards Conformance

Standards Compliance IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3x (Full-duplex Flow Control)

IEEE 802.3az Energy Efficient Ethernet (EEE)

Regulatory Compliance FCC Part 15 Class B, CE

Environments

Temperature Operating: 0~50 degrees C

Storage: -10~70 degrees C

Humidity Operating: 5~95%

Storage: 5~95% (non-condensing)
