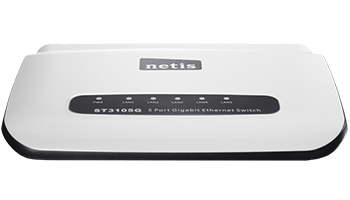

Netis ST-3105G 5-Port Gigabit Ethernet Switch
The netis ST3105G Gigabit Ethernet Switch provides 5 10/100/1000Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Together with the plug-and-play & Green Power feature, it may provide you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 1000Mbps network.
Hardware
| Interface | 5 * 10/100/1000M RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
| LED | PWR, 1-5 Link/Activity |
| Power Supply | DC 9V/500mA(Output) |
| Dimensions (L x W x H ) | 183 x 125 x 31 mm |
| Switching Features | |
| Standard |
IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x Flow Control |
| Access Method | CSMA/CD |
| Transmission Method | Store and Forward |
| Switch Architecture | Non-blocking |
| Data Transmission Rate |
10/100/1000Mbps(Half-duplex) 20/200/2000Mbps(Full-duplex) |
| MAC Address Table | 2K |
| Jumbo Frame | 9KB |
| Others | |
| Certification | FCC, CE, BSMI |
| Environment |
Operating Temperature: 0℃~40℃ Storage Temperature: -20℃~70℃ Operating Humidity: 5%~90% non-condensing S torage Humidity: 5%~90% non-condensing |
| Package |
1 * ST3105G 1 * Quick Installation Guide 1 * Power Adapter |
