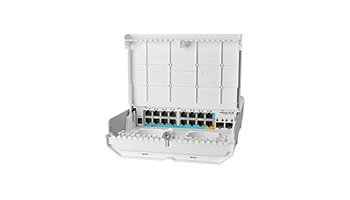

MikroTik CRS318-16P2S+OUT netPower 15FR Outdoor 18-port Switch PoE, SFP



With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept - aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Another Ethernet port has PoE-out – you can use it to power an aggregate link such as our Wireless Wire Dish or a security camera, for example.

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!

netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.



Specifications

Product code CRS318-1Fi-15Fr-2S-OUT

Architecture ARM 32bit

CPU 98DX224S

CPU core count 1

CPU nominal frequency 800 MHz

Dimensions 304 x 212 x 71 mm

License level 5

Operating System SwOS / RouterOS (Dual boot)

Size of RAM 256 MB

Storage size 16 MB

Storage type FLASH

Tested ambient temperature -40°C to 70°C



Powering

PoE in Passive PoE

PoE in input Voltage 18-57 V (recommended 36-57V)

PoE-out ports Ether15

Number of DC inputs 16 (DC jack, PoE-IN)

DC jack input Voltage 18-57 V

Max power consumption 29 W

Max power consumption without attachments 10 W

PoE-out

PoE-out ports Ether15

PoE out Passive PoE

Max out per port output (input < 30 V) 0.75 A

Max out per port output (input > 30 V) 0.5 A

Max total out (A) 0.75 A



Ethernet

10/100 Ethernet ports 16



Fiber

SFP ports 2



Other

CPU temperature monitor Yes

Voltage Monitor Yes
