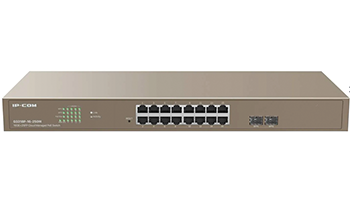

IP-Com Switch, 16xGbE ports+2 SFP slots, Cloud Management, PoE+ G3318P-16-250W

The IP-COM G3318P-16-250W is a network switch designed for small and medium-sized business networks, IP surveillance systems, and wireless access point deployments. It combines Gigabit Ethernet connectivity with Power over Ethernet (PoE) to simplify network installation and reduce the need for separate power supplies for compatible devices.


Key Features
- 16 Gigabit PoE ports for IP cameras, wireless access points, and other compatible devices.
- 2 SFP uplink ports for fiber-optic network connections.
- Up to 30 W per PoE port, supporting IEEE 802.3af/at.
- 230 W maximum PoE output budget according to the manufacturer's detailed specifications.
- Cloud and app management for remote monitoring and configuration.
- Layer 2 management: VLAN, QoS, link aggregation, RSTP, and port mirroring.
- Extended PoE transmission: supports up to 250 m in supported configurations.
- Rack-mountable design, measuring 440 × 178.8 × 44 mm

Technical Specifications
Specification    Details
Brand    IP-COM
Model    G3318P-16-250W
Switch type    Cloud-managed Gigabit PoE switch
Total ports    18
Ethernet ports    16 × 10/100/1000 Mbps RJ45
Fiber uplinks    2 × 100/1000 Mbps SFP
Switching capacity    36 Gbps
Forwarding rate    26.8 Mpps
MAC address table    8K
PoE standards    IEEE 802.3af/at
Maximum PoE power per port    30 W
Total PoE budget    230 W
VLAN    IEEE 802.1Q
Management    Web UI, IMS Cloud, IP-COM app
Power supply    100–240 V AC, 50/60 Hz
Operating temperature    0°C to 45°C
Dimensions    440 × 178.8 × 44 mm
Installation    Rack mount
