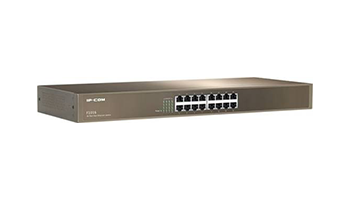

IP-Com F1016 switch, 16x10/100Mbps, 1U, 19-inch rack F1016



F1016 provides 16 10/100Mbps autosensing ports and all ports support Auto MDI/MDIX for parallelwire and crosswire, making this device not only can be connection to common terminal equipments, but also can be cascade connection to other nerworking equipments to extend your networking easily.F1016 can provide you a easy, economic, high-performance solution for 100M networking, which is your ideal chioce for high-speed networking.

Product Features



● Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x

● Provide 16 10/100Mbps auto-negotiation ports

● Store & forward, share memory, non-blocking architecture

● Supports MAC address self-learning and auto MDI/MDIX

● Supports full-deplux 802.3x flow control and half-duplux backpressure flow control

● Supports 4K MAC address list, MAC address learning and auto-ageing

● Built-in switching power adapter, support AC 110-160V 50/60Hz input

● 6000V Lightning protection for power supply

● Fanless design

● Standard 19-inch rack-mountable, 1U steel case

● Plug and play, no need configuration
