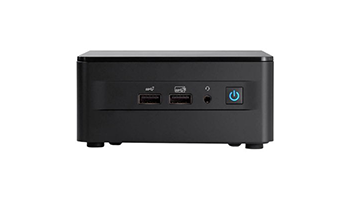

INTEL RNUC12WSHI50000 NUC 12 Pro Kit NUC12WSHi5, no cord, single unit
System
System type Personal computer
Compute Card system form factor
Processor
Processor Intel Core i5-1240P Processor
Number of CPU cores 12
Threads Quantity 16
Socket 1744 processor socket
Number of installed processors 1
Max. number of installed processors 1
CPU Cache Size 12 MB
Number of motherboards supported 1
Memory
Memory type DDR4 SDRAM
Memory form factor SODIMM 260-pin
Memory Speed/Frequency 3200MHz(PC4-25600)
Offers a Non-ECC error checking method
Maximum amount of installed memory 64 GB
Total number of memory slots 2
Memory Features Two DDR Channels
XMP
Controller
Built-in Storage Controller:
PCI Express 4.0 x4 (M.2 (Key M))
Storage Controller:
PCI-Express 3.0 x1 (M.2 (Key B))
Storage Controller:
SATA III-600 (1)
Plug-in card Wi-Fi Controller:
Intel Wi-Fi 6E AX211 M.2 (Key E)
Video output
Video controller - form factor Built-in
Intel Iris Xe Graphics video card chipset
Video memory type Shared video memory
Audio output
Audio controller - form factor Built-in
Audio output type 7.1 channel surround
Compatible audio standards High Definition Audio
Network specifications
Network Drive Form Factor Embedded
Intel i225-V network card chipset
LAN Gigabit Ethernet
WI-FI IEEE 802.11ax Wi-Fi 6
Bluetooth Bluetooth 5.2
Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet
Slots provided
M.2 Slot Quantity 3
Supported interfaces
Thunderbolt 4 2 (USB Type-C)
HDMI 2 (HDMI (Type A))
LAN 1 (RJ-45)
USB 3.2 3 (USB 3.2 (type A))
USB 2.0 1 (USB 2.0 (type A))
Headphone port 1 (3.5 mm mini jack)
Power
Power supply type Power supply module
Power Location Internal
Other features
Exterior color Black
Dimensions & weight
Height 112 mm
Depth 117 mm
Width 54 mm
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package depth (mm) 171mm
Package Width (mm) 136mm
Package height (mm) 112mm
Package Weight - Gross (kg) 1.128 kg
Package Weight - Net (kg) 1.0886 kg
Quantity per pack 1
Carton depth (mm) 800 mm
Carton width (mm) 252 mm
Carton height (mm) 138 mm
Carton weight - Gross (kg) 7.43 kg
Retail Packaging Net Weight Carton 0.01 kg
Retail Packaging Net Weight Plastic 0.01 kg
Packages in a carton 5
Package type With packaging
EAN code 5032037248785
