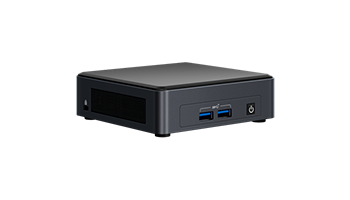

INTEL BNUC11TNKI30000 NUC 11 Pro



Intel NUC 11 Pro Kit NUC11TNKi3: Intel Core i3-1115G4, Intel UHD Graphics, Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C, Front: 2xUSB 3.2 Rear: 2xUSB 4 (type C), 1xUSB 3.2, 1xUSB 2.0 Internal: 1xUSB 3.2 on m.2 22x42 (pins), 2xUSB 2.0 (headers), w/no cord, single pack



System

System type Personal Computer Barebone

System Form Factor Ultra Compact Form Factor

Processor

Processor Intel Core i3 Mobile Processor 1115G4

Number of CPU cores 2

Threads Quantity 4

Maximum CPU bus clock speed 4 GT/sec

Socket 1449 processor socket

Number of installed processors 1

Max. number of installed processors 1

CPU Cache Size 6 MB

Features Supports 10 nm Processors

Number of motherboards supported 1

Memory

Memory type DDR4 SDRAM

Memory form factor SODIMM 260-pin

Memory Speed/Frequency 3200MHz(PC4-25600)

Offers a non-ECC error checking method

Maximum amount of installed memory 64 GB

Total number of memory slots 2

Memory Features Two DDR Channels

Controller

Built-in Storage Controller:

PCI Express 4.0 x4 (M.2 (Key M))

Storage Controller:

PCIe 3.0 x1/SATA (M.2 (Key B))

Plug-in card Wi-Fi Controller:

Intel Wi-Fi 6 AX201 M.2 (Key E)

Video output

Video controller - form factor Built-in

Intel UHD Graphics video card chipset

Video memory type Shared video memory

Network specifications

Network Drive Form Factor Embedded

Intel I225-LM network card chipset

LAN Yes

WI-FI IEEE 802.11ax Wi-Fi 6

Bluetooth Bluetooth 5.1

Supported data exchange protocols 2.5 Gbps

Slots provided

M.2 Slot Quantity 2

Supported interfaces

USB 3.2 Gen 1 3 (USB 3.2 (type A))

USB 2.0 1 (USB 2.0 (type A))

LAN 1 (RJ-45)

Thunderbolt 3 1 (USB Type-C)

Thunderbolt 4 1 (USB Type-C)

HDMI 2 (HDMI (Type A))

Power

Power type Power adapter

Power supply location External

Dimensions & weight

Height 37 mm

Depth 117 mm

Width 112 mm

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 1.3 kg

Quantity per pack 1

Carton weight - Gross (kg) 1.3 kg

Retail Packaging Net Weight Carton 0.01 kg

Retail Packaging Net Weight Plastic 0.01 kg

Packages in Carton 1

Package type With packaging

EAN code 5032037204514
