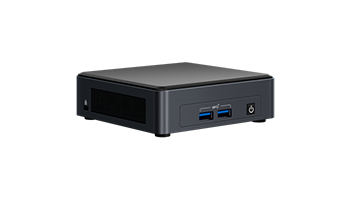

INTEL BNUC11TNHI70Z02 NUC 11 Pro
Intel NUC 11 Pro Kit NUC11TNHi70Z, EU cord, single pack
System
System type Personal Computer Barebone
System Form Factor Ultra Compact Form Factor
Processor
Processor Intel Core i7 Mobile Processor 1165G7
Number of CPU cores 4
Threads Quantity 8
Maximum CPU bus clock speed 4 GT/sec
Socket 1449 processor socket
Number of installed processors 1
Max. number of installed processors 1
CPU Cache Size 12 MB
System on Chip (SoC) motherboard chipset
Features Supports 10 nm Processors
Number of motherboards supported 1
Memory
Memory type DDR4 SDRAM
Memory form factor SODIMM 260-pin
Memory Speed/Frequency 3200MHz(PC4-25600)
Offers a non-ECC error checking method
Maximum amount of installed memory 64 GB
Total number of memory slots 2
Memory Features Two DDR Channels
Controller
Built-in Storage Controller:
PCI Express 4.0 x4 (M.2 (Key M))
Storage Controller:
PCIe 3.0 x1/SATA (M.2 (Key B))
Storage Controller:
SATA (1)
Plug-in card Wi-Fi Controller:
Intel Wi-Fi 6 AX201 PCI-Express 3.0 x1 (M.2 (Key E))
Video output
Video controller - form factor Built-in
Intel Iris Xe Graphics video card chipset
Video memory type Shared video memory
Network specifications
Network Drive Form Factor Embedded
Intel I225-LM network card chipset
LAN Yes
WI-FI IEEE 802.11ax Wi-Fi 6
Bluetooth Bluetooth 5.2
Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet
2.5 Gbps
Slots provided
Number of internal slots for 2.5-inch drives 1
M.2 Slot Quantity 2
Supported interfaces
USB 3.2 Gen 1 3 (USB 3.2 (type A))
USB 2.0 1 (USB 2.0 (type A))
LAN 1 (RJ-45)
HDMI 2 (HDMI (Type A))
Power
Power type Power adapter
Other features
Exterior color Black
Types of installation Desktop
Cables Included Power Cable (EU Plug)
Dimensions & weight
Height 54 mm
Depth 117 mm
Width 112 mm
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 1.6 kg
Package Weight - Net (kg) 1.2 kg
Quantity per pack 1
Carton weight - Gross (kg) 1.6 kg
Retail Packaging Net Weight Carton 0.01 kg
Retail Packaging Net Weight Plastic 0.01 kg
Packages in Carton 1
Package type With packaging
