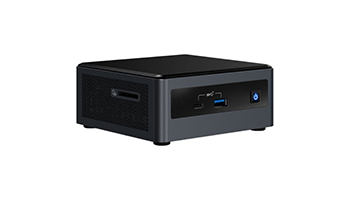

INTEL BXNUC10I5FNHN NUC 10th Gen
Intel NUC 10 Performance kit NUC10i5FNHN with Intel Core i5-10210U, M.2 and 2.5" Drive, HDMI 2.0a; USB-C (DP1.2), w/ no codec, no cord
System
System type Personal Computer Barebone
System Form Factor Ultra Compact Form Factor
Built-in devices Card Reader (SD)
Flash memory type SDXC
Processor
Processor Intel Core i5 Mobile Processor 10210U
Internal clock frequency 1.6 GHz (up to 4.2 GHz)
Number of CPU cores 4
Threads Quantity 8
Maximum CPU bus clock speed 4 GT/sec
Socket 1528 processor socket
Number of installed processors 1
Max. number of installed processors 1
CPU Cache Size 6 MB
Features Supports 14 nm Processors
Number of motherboards supported 1
Memory
Memory type DDR4 SDRAM
Memory form factor SODIMM 260-pin
Memory Speed/Frequency 2666MHz(PC4-21300)
Offers a non-ECC error checking method
Maximum amount of installed memory 64 GB
Total number of memory slots 2
Memory Features Two DDR Channels
Controller
Built-in Storage Controller:
PCI Express 3.0 x4 (M.2)
Plug-in card Wi-Fi Controller:
Intel Wi-Fi 6 AX201 M.2
Video output
Video controller - form factor Built-in
Intel UHD Graphics video card chipset
Video memory type Shared video memory
Audio output
Audio controller - form factor Built-in
Audio output type 7.1 channel surround
Compatible audio standards High Definition Audio
Network specifications
Network Drive Form Factor Embedded
Intel i219V network card chipset
LAN Gigabit Ethernet
WI-FI IEEE 802.11ax Wi-Fi 6
Bluetooth Bluetooth 5.1
Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet
Slots provided
Number of internal slots for 2.5-inch drives 1
M.2 Slot Quantity 1
Supported interfaces
USB 6
Thunderbolt 3 1 (USB Type-C)
LAN 1 (RJ-45)
HDMI 1
Infrared 1
Power
Power type Power adapter
Power supply location External
Other features
Exterior color Black
Dimensions & weight
Height 51 mm
Depth 112 mm
Width 117 mm
Warranty
Warranty products - subject to return Yes
Warranty Validity Criteria Serial Number
Logistics information
Package Weight - Gross (kg) 1.4 kg
Package Weight - Net (kg) 1.1 kg
Quantity per pack 1
Carton weight - Gross (kg) 1.3 kg
Packages in Carton 1
Package type With packaging
EAN code 5032037221023
